Valve Series Features:

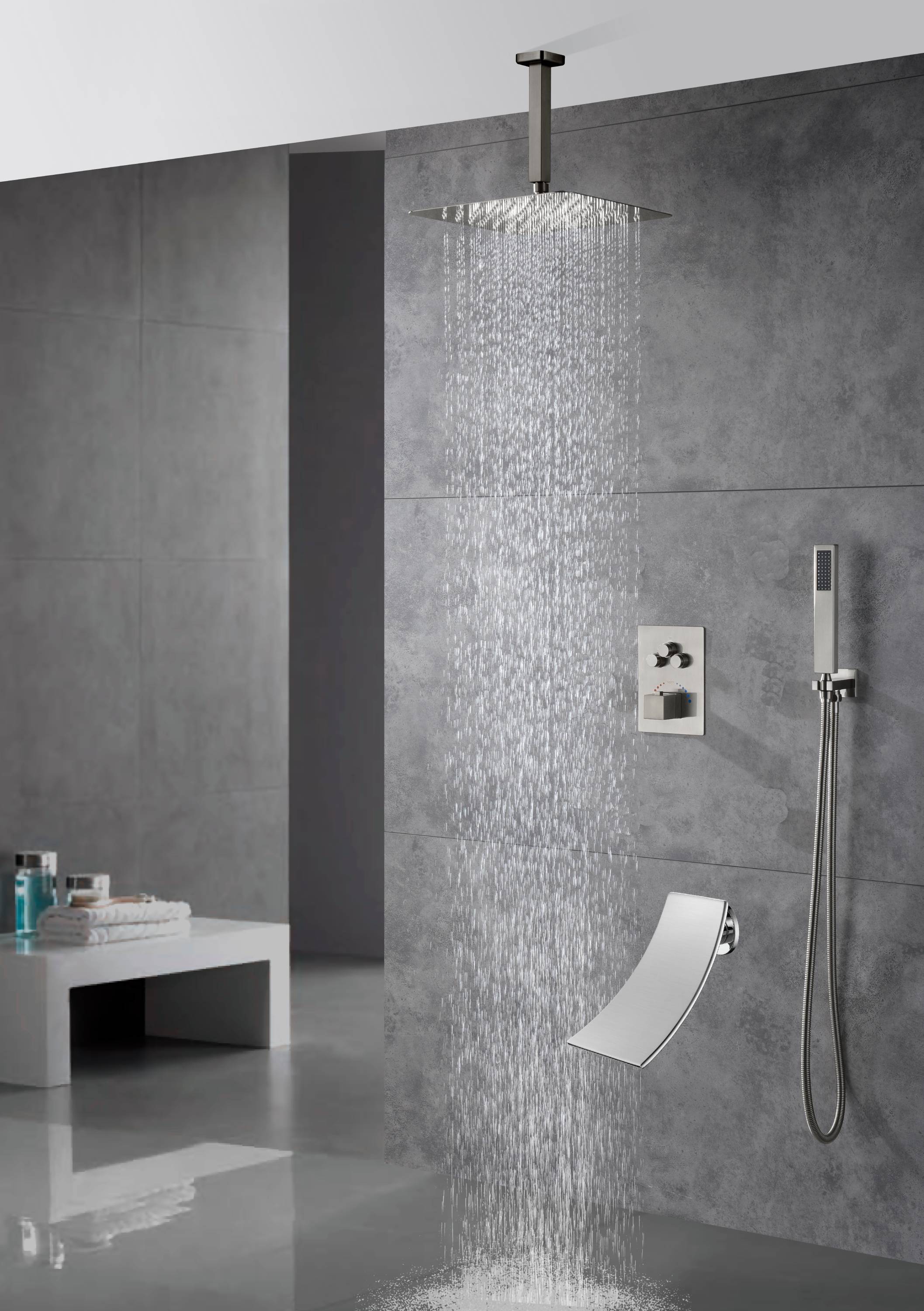

(1) F3 valve style: without digital display, the push buttons can not adjust the water flow and water pressure, it requires 1/2 inch hot and cold water pipelines, water flow 2.5~5.6GPM;

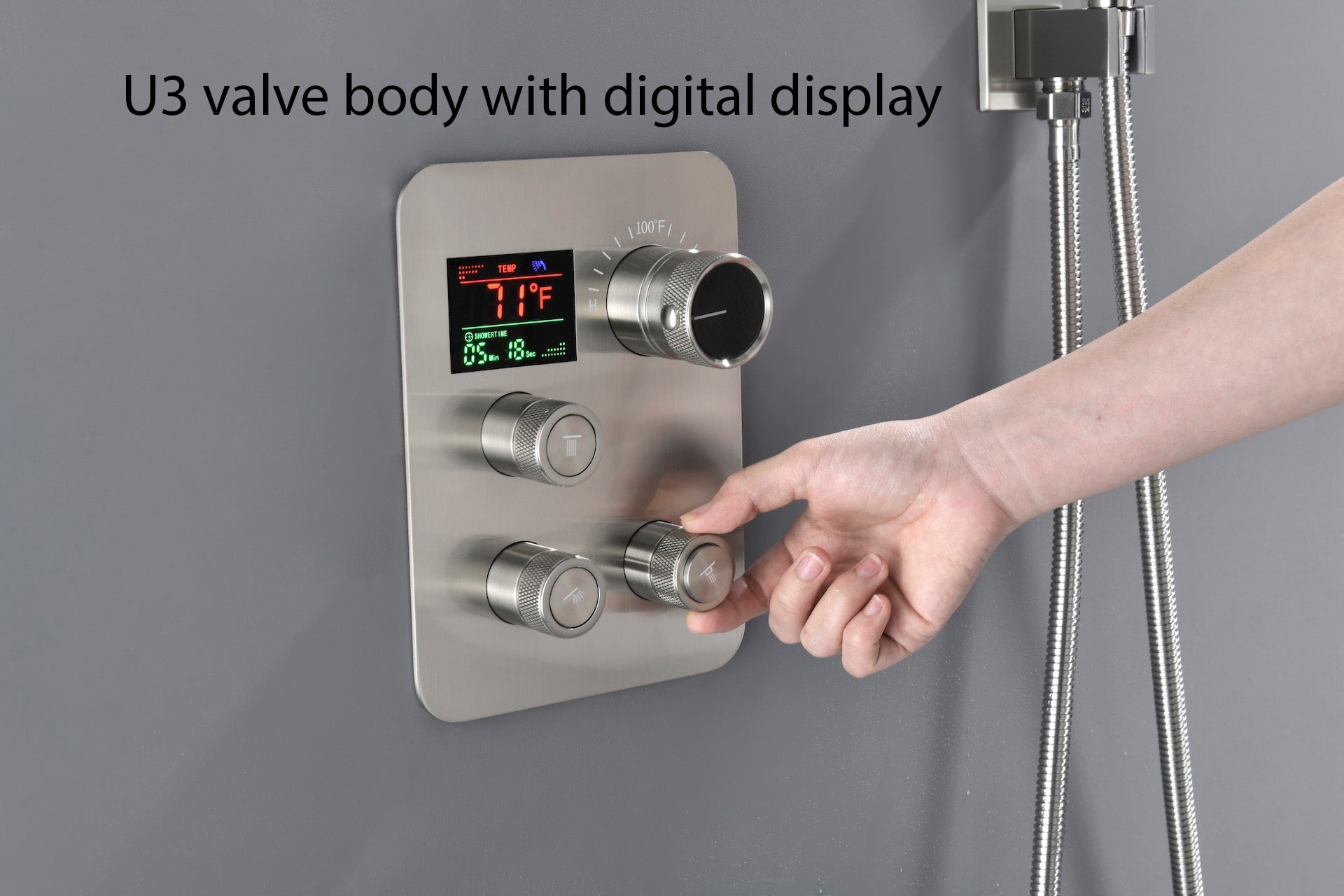

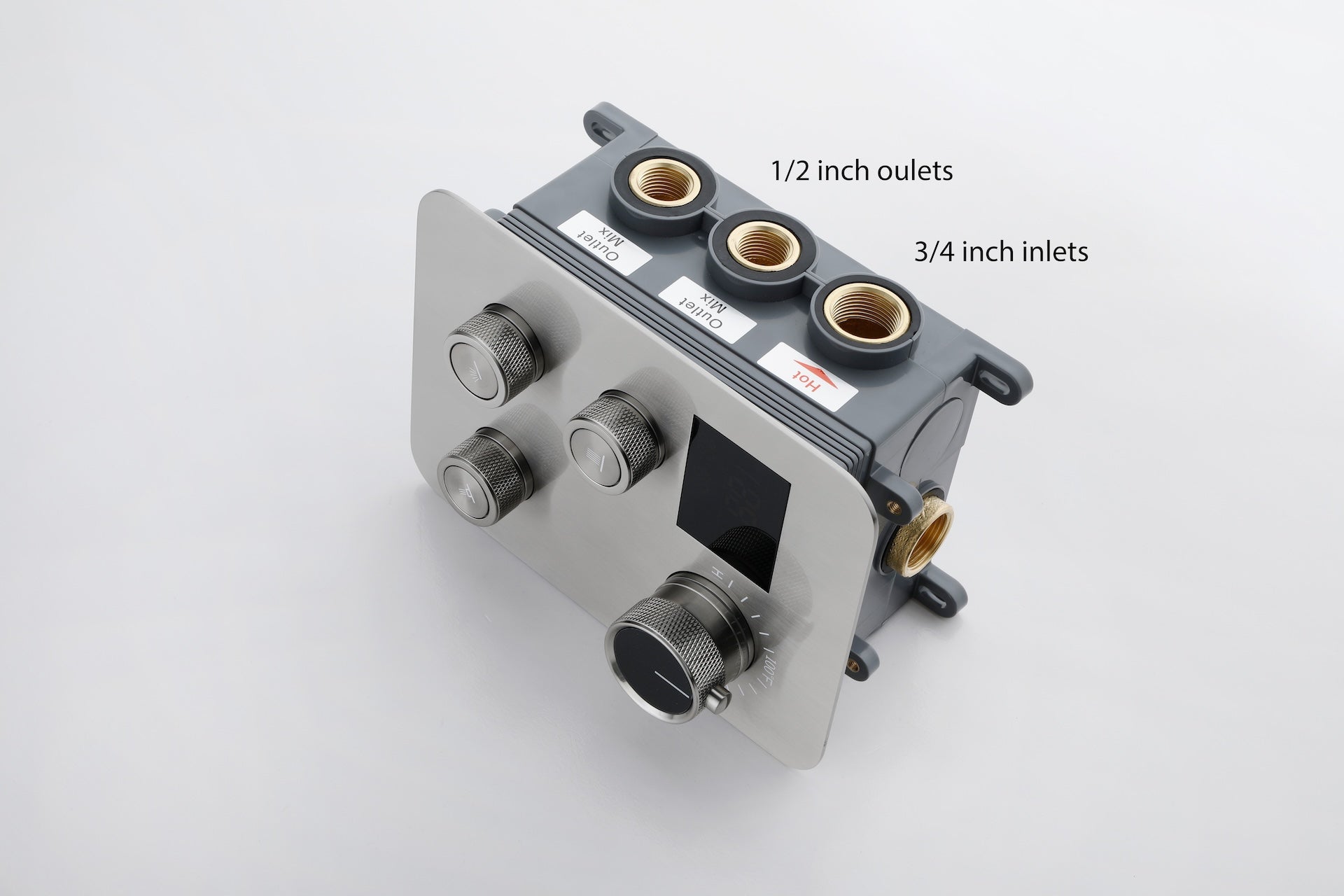

(2) U3 valve style: with digital display, the push buttoms can adjust the water flow and water pressure, it requires 1/2 inch or 3/4 inch hot and cold water pipelines, water flow 2.5~7.8GPM ( high water flow);

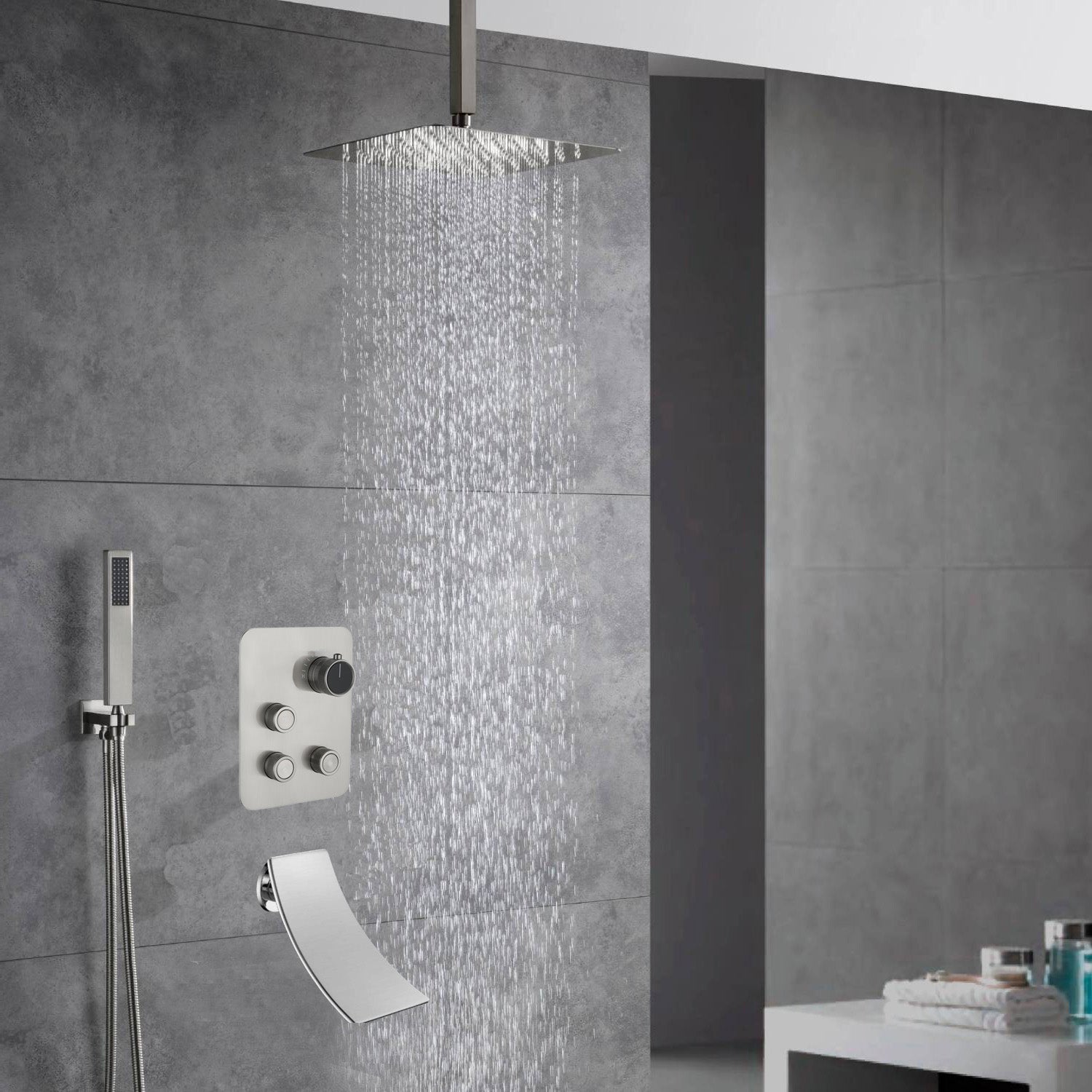

(3) UF3 valve style: without digital display, the push buttoms can adjust the water flow and water pressure, it requires 1/2 inch or 3/4 inch hot and cold water pipelines, water flow 2.5~7.8GPM ( high water flow);

• Constructed of high-quality metals such as brass and stainless steel for durability and longevity.
• Covered under Wonderland's limited lifetime warranty, ensuring customer satisfaction and peace of mind.
• Premier finishing process that resists rusting and corrosion, even with everyday use.
• Backflow prevention for precise on-off volume adjustment from zero to full flow.
• Triple function valve with trim and a convenient knob for easy operation.
• Thermostatic valve cartridge with scald guard feature for added safety and protection.
• Secure mounting assembly for a secure and stable installation.
• Three push buttons and a single knob handle for effortless control and customization.

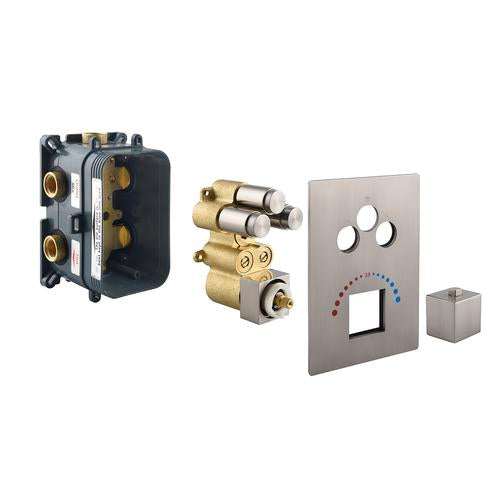

• Heavy-duty brass rough-in valve included for reliable performance.
• High-quality temperature cartridge that requires hot water pipeline on the left side and cold water pipeline on the right side.

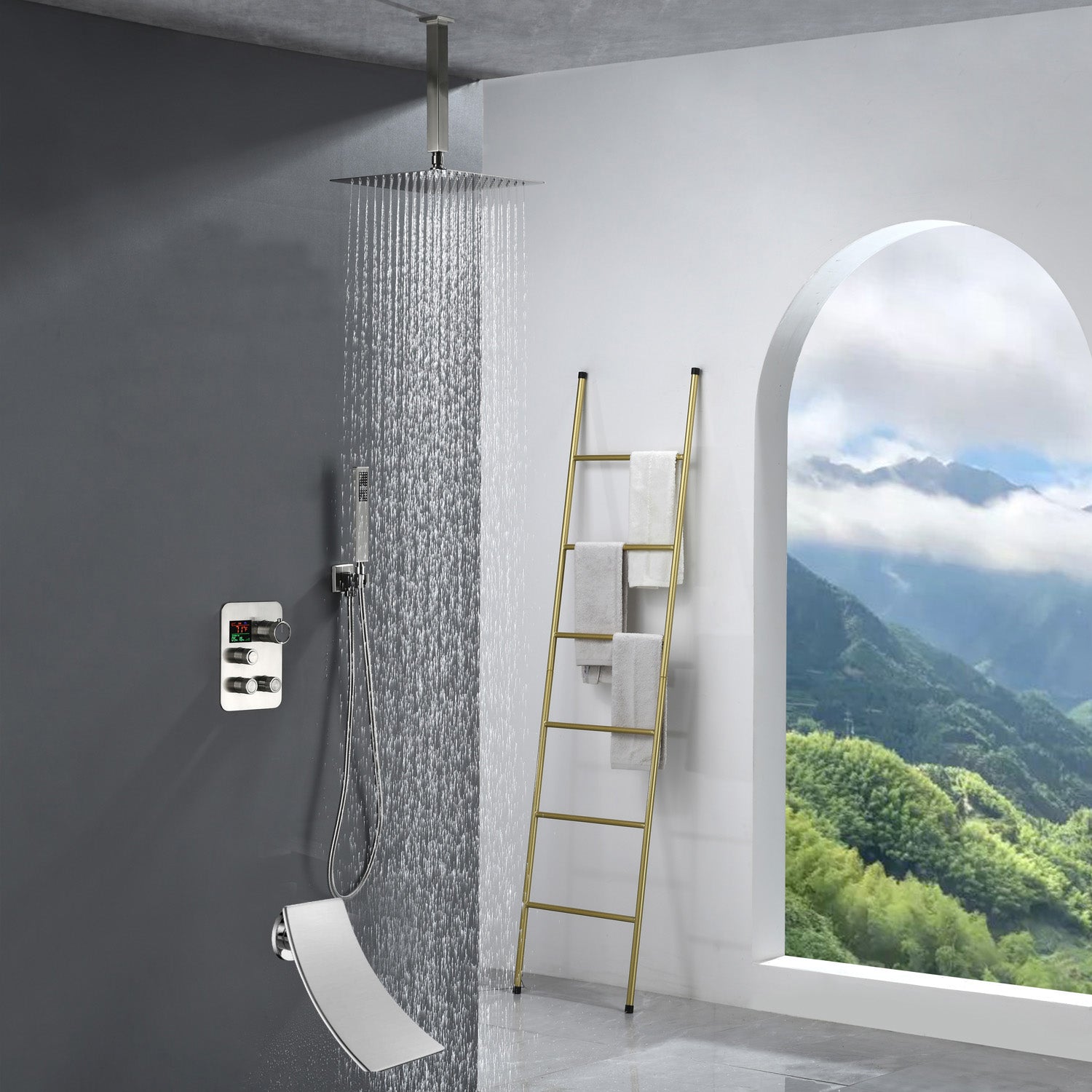

• Whole unit shower system that provides a complete and luxurious shower experience.
• Water flow ranges from 0 to 4.8 GPM at 60 PSI.
• Recommended water pressure is between 50 to 90 PSI.
• Stylish brushed nickel finish to enhance the aesthetics of your bathroom.
• All threads are sized NPT 1/2 inch, adhering to US standards.

UPC Approvals:

• International symbol for design innovation, recognizing products that excel in quality, durability, functionality, and emotional connection with customers.

Wonderland America Technology:

• Innovative technology that reduces water consumption by up to 50% without compromising performance.
• Made-to-last finish that is highly resistant to dirt and scratches, ensuring effortless maintenance and long-lasting beauty.

Thermostat Features:

• Increased sensitivity and restructured waterways for faster reaction to changes in water pressure.
• Up to six times more accurate than leading competitors, providing precise temperature control.
• Achieves the desired temperature in seconds and maintains it throughout your shower.
• Promotes water conservation without sacrificing your shower experience.

SafeStop Feature:

• Safety feature that allows you to set the maximum temperature at 100°F/38°C, preventing scalding accidents.

Applicable Codes & Standards:

• Complies with ASME A112.18.1-2018/CSA B125.1-18 standards for quality and safety.

F3 Series Specifications:

• Valve Trim Width: 5-1/8"
• Valve Trim Height: 8-1/16"
• Recommended wall depth for valve body: 2-⅝’’ ~ 3’’

Characteristics and Features:

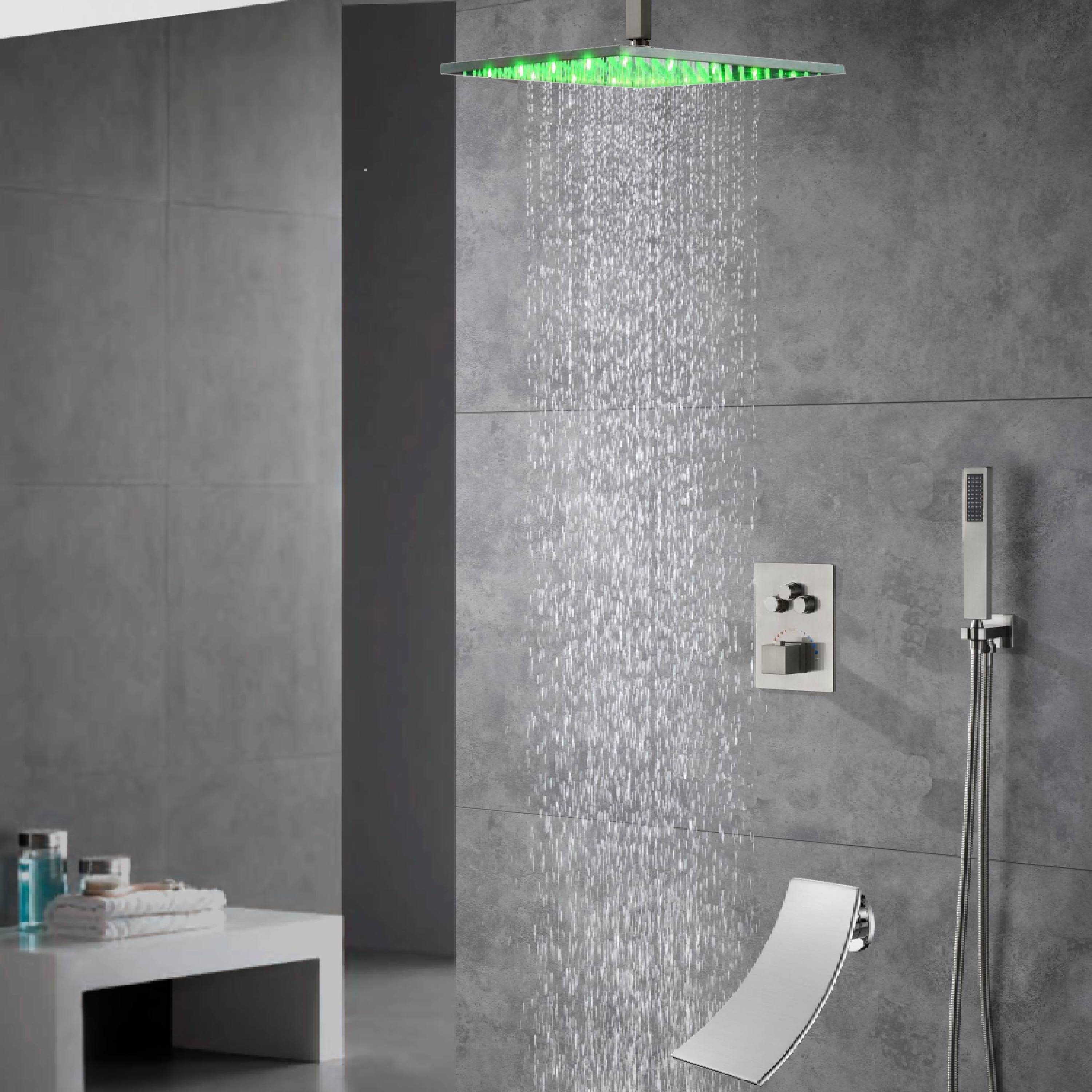

• Choose from two sizes for the top rain head: 12’’ x 12’’ or 16’’ x 16’’ for a luxurious rainfall experience.Upgrade your shower with two styles of shower heads: a classic design without LED lights for a timeless aesthetic, or an LED light-equipped style that creates a mesmerizing shower experience powered by water flow, eliminating the need for batteries. Transform your shower into an oasis of relaxation and ambiance.

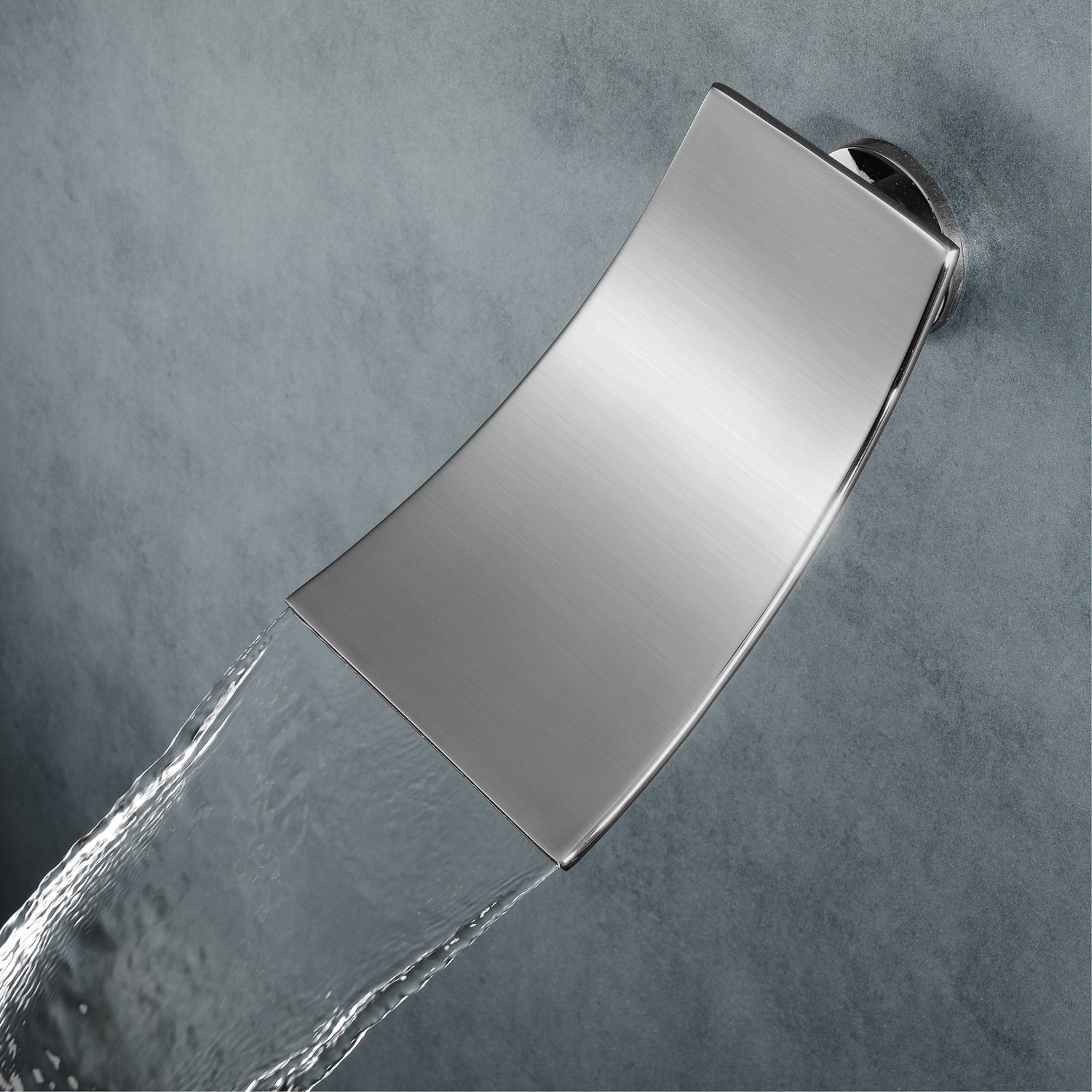

• Tub spout size available: 7.2'' for easy filling of your bathtub.
• Handle style options include a knob or push button for personalized style and functionality.
• Thermostatic valve type ensures precise temperature control and a comfortable shower experience.
• Triple function valve with trim for added versatility.
• Thermostatic valve cartridge with scald guard for enhanced safety.
• Secure stop limit feature to prevent scalding accidents.
• Stylish brushed nickel finish for a modern and sophisticated look.
• Includes a 59-inch stainless steel shower hose for flexibility and convenience.
• All threads are sized NPT 1/2 inch, adhering to industry standards.

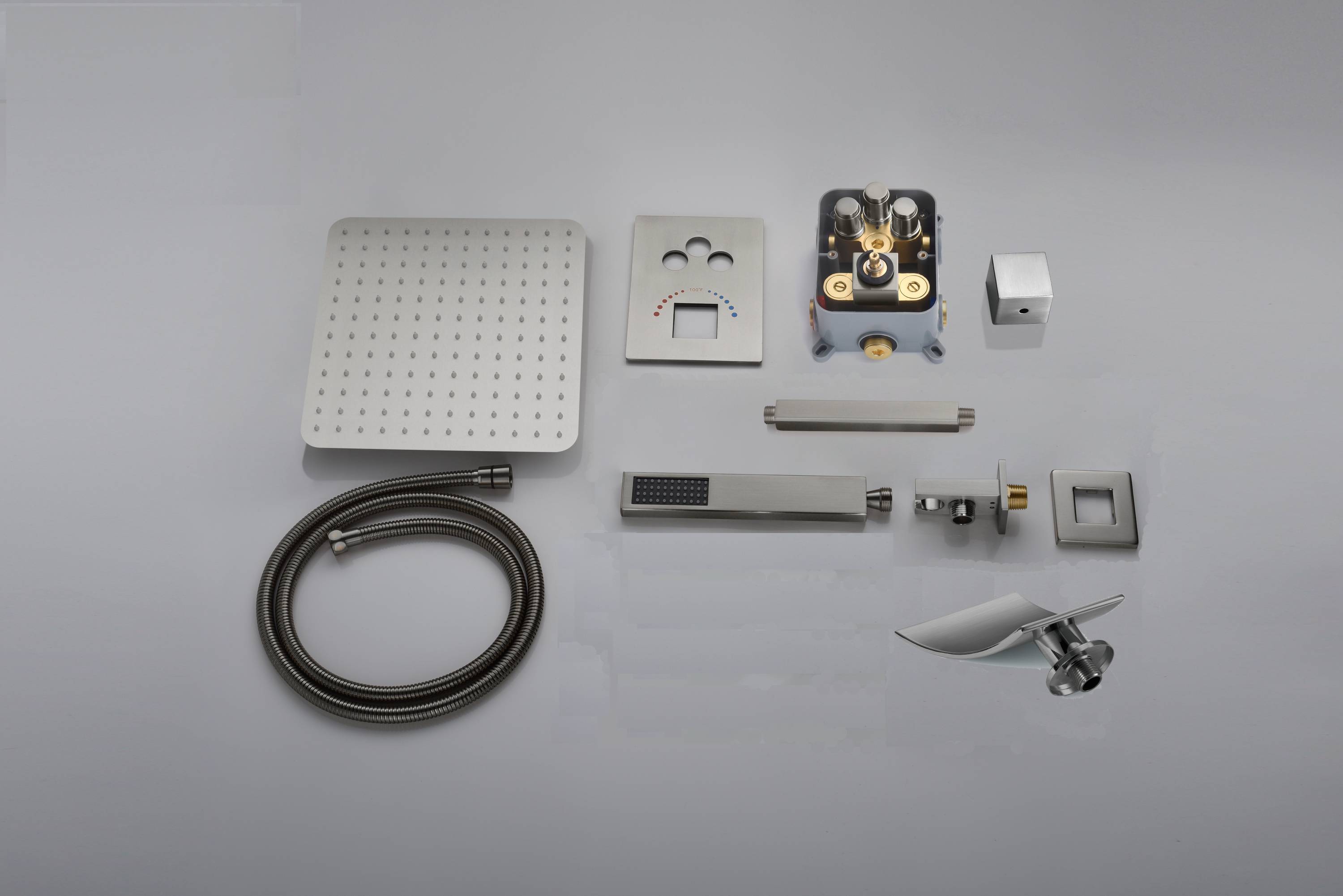

Included Components:

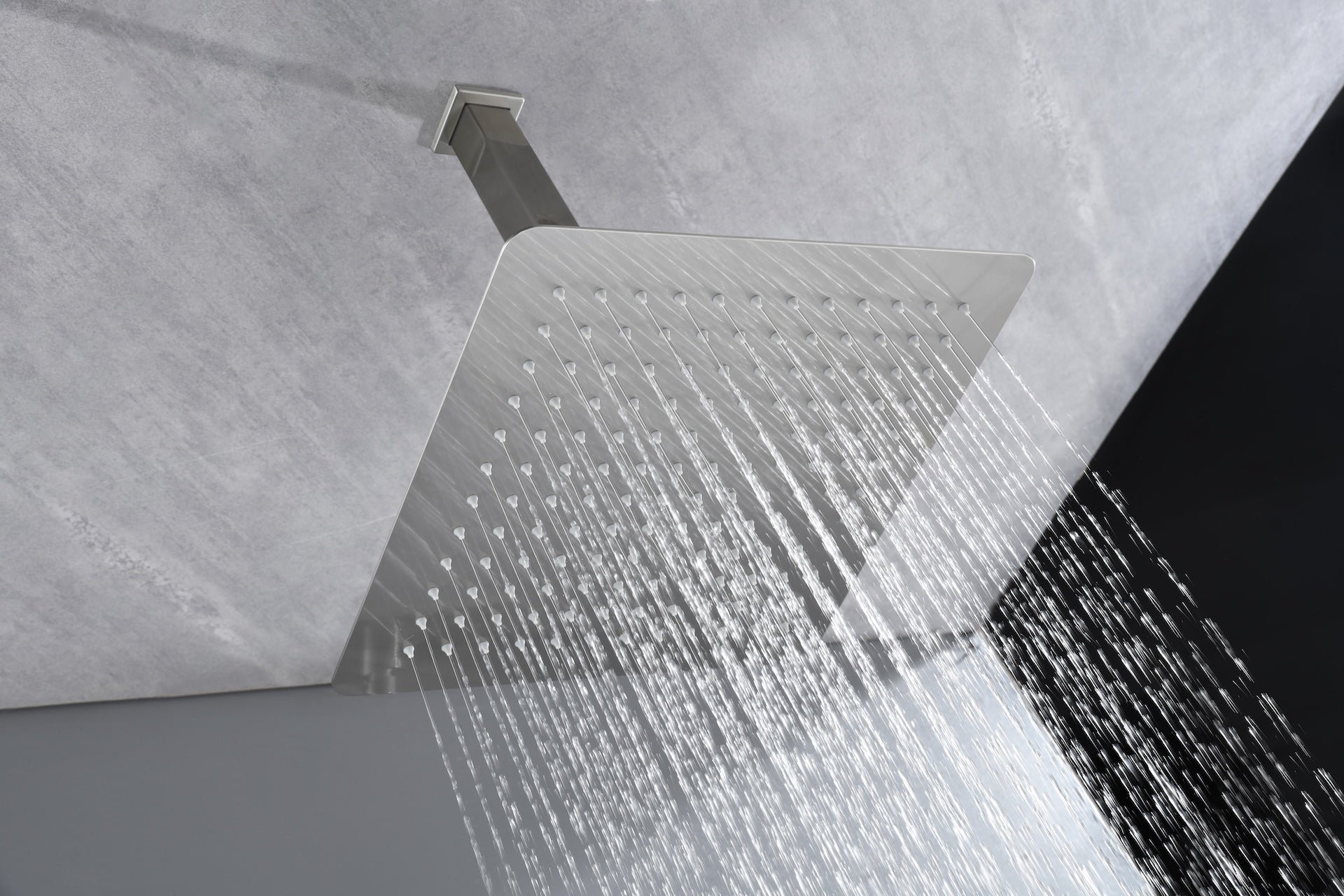

• Top rain head made of stainless steel for durability and a luxurious shower experience.

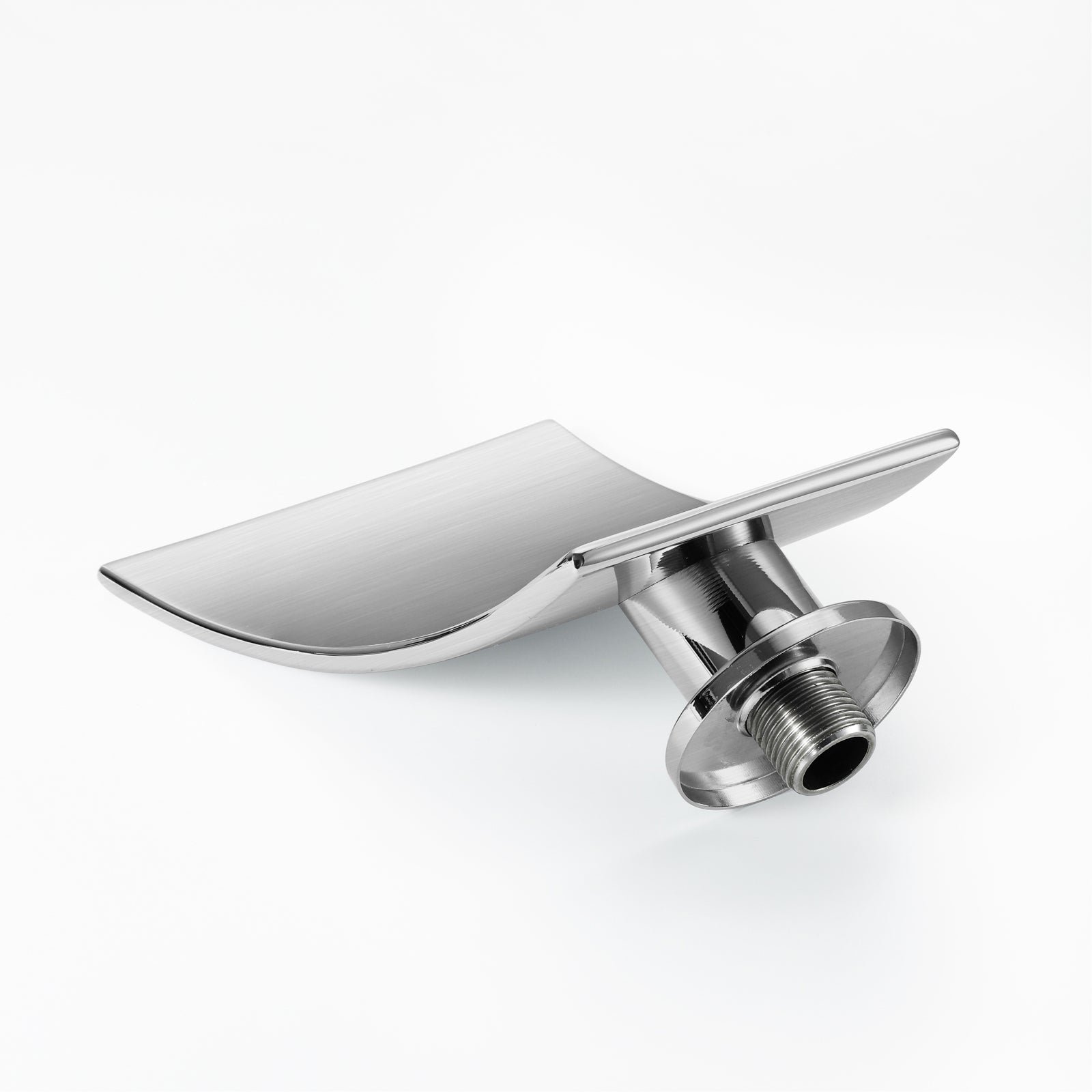

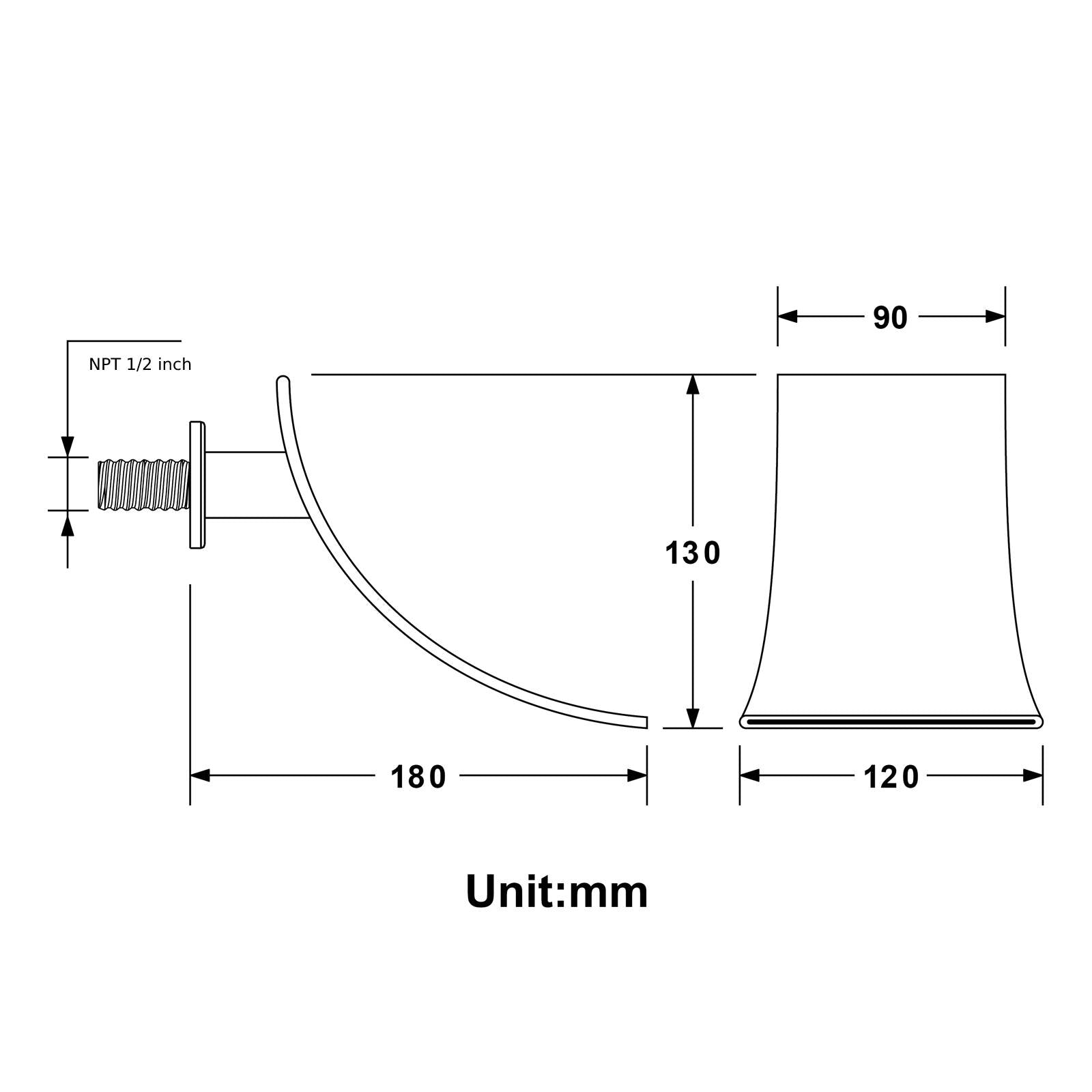

• Tub spout measuring 7.1 inches, constructed with brass and stainless steel materials.
• 9-inch ceiling shower arm made of brass, featuring NPT ½ inch male thread and G ½ inch male thread, along with a flange.
• 8-inch wall arm made of brass, featuring NPT ½ inch male thread and G ½ inch male thread, along with a flange.
• Shower holder made of brass for securely holding your shower head.
• Thermostatic valve with trim and a square knob for precise temperature control.
• Shower hose and handle shower made of stainless steel for durability and ease of use.
• Instruction manual for easy installation and operation.
