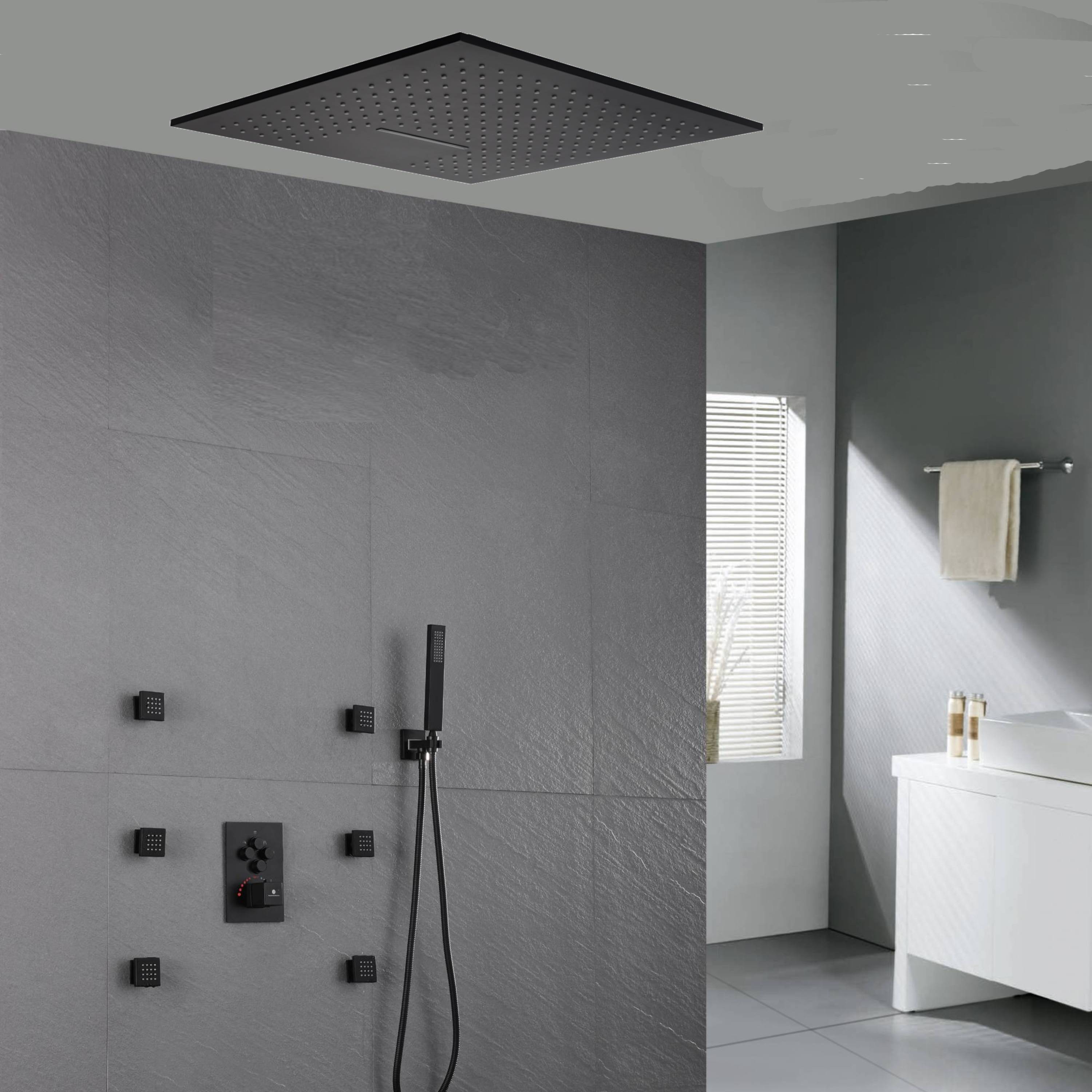

20'' Flushed on rainfall and waterfall ceiling matte Black 4 way thermostatic shower faucets with 6 body jets
Multi-Function Full Body Shower Faucet Set
Color: Matte Black
4 way: waterfall shower, rainfall shower, bodyspray and handheld sprayer
shower head size: 20 x 20 inch
Each function run all together and seperately
Specification
All Metal Material: Solid Brass; Stainless Steel (top showerhead, hose)
Finish: Matte Black
Mounting: Concealed installation Ceiling-Mount or flush on ceiling
Shower arm flange: slide along the shaft for easy and quick installation
Hand Spray Hose: 59inch

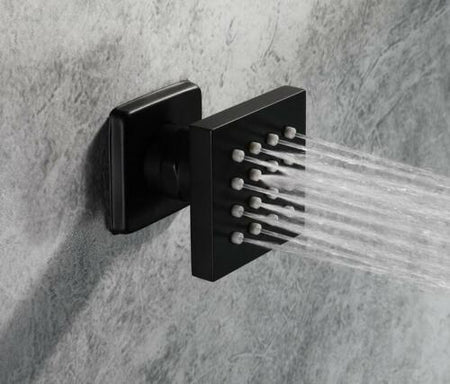

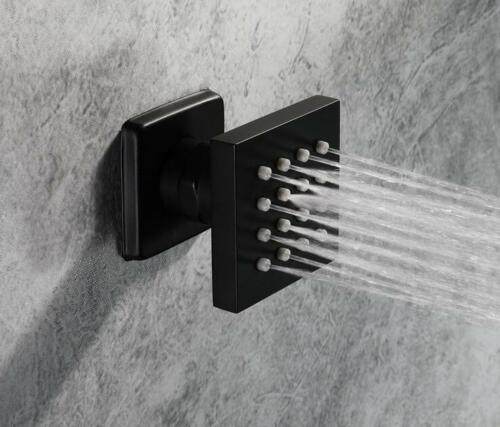

Body jets: adjustable, 2x 2 inch ( flush on tile wall)
Connection: NPT 1/2
Suggestion: Fine water supply will bring you a very best shower experience than ever.
water flow: 2.5GPM~3.5GPM
Water pressure: 0.6 MPA~1 MPA
Water pipe lines: 1/2 inch water pipes for the hot and cold water mixer inlet, the others are 1/2 inch

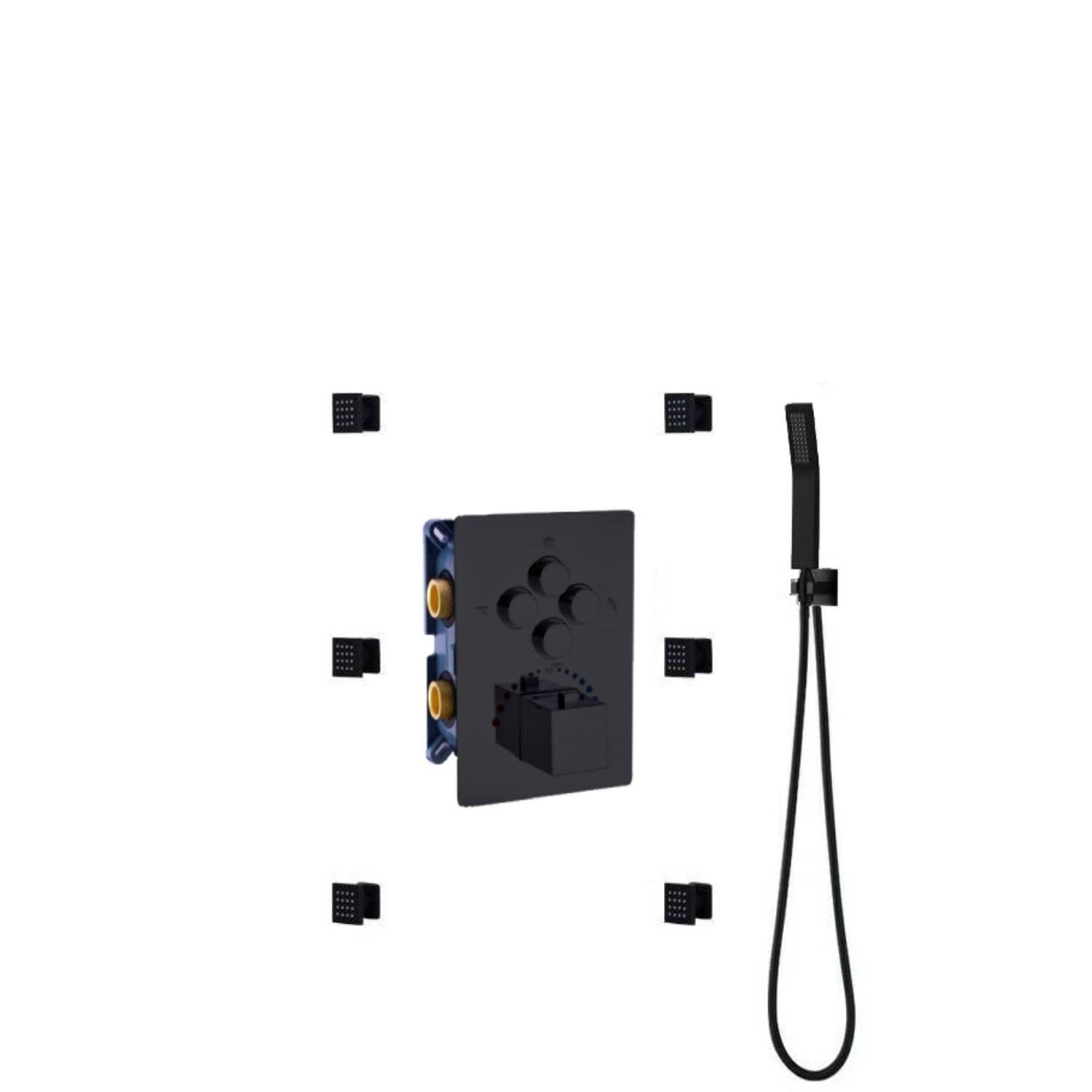

WHAT’S IN THE BOX?
1 * Pressure balancing thermostatic mixer valve and trim (brass)

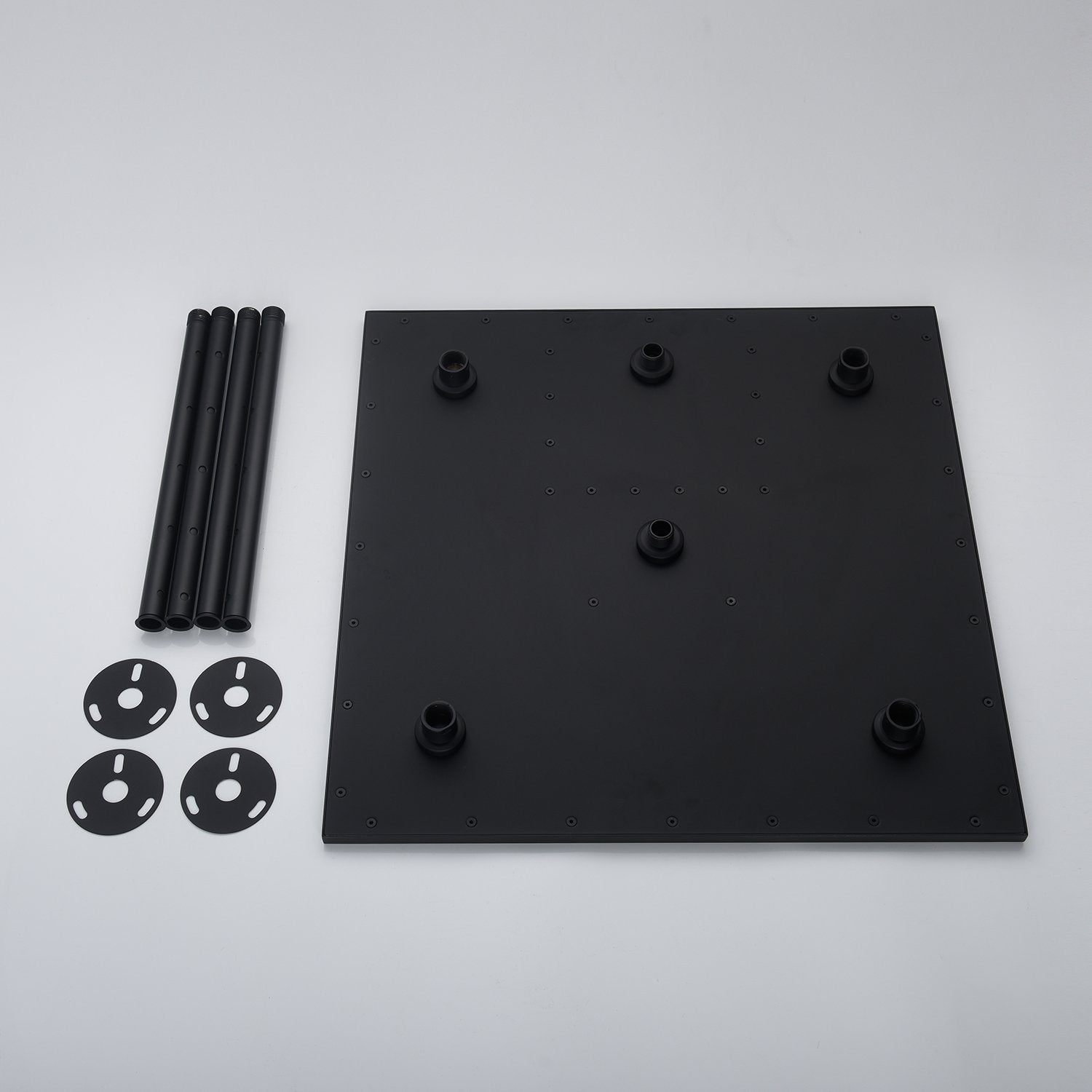

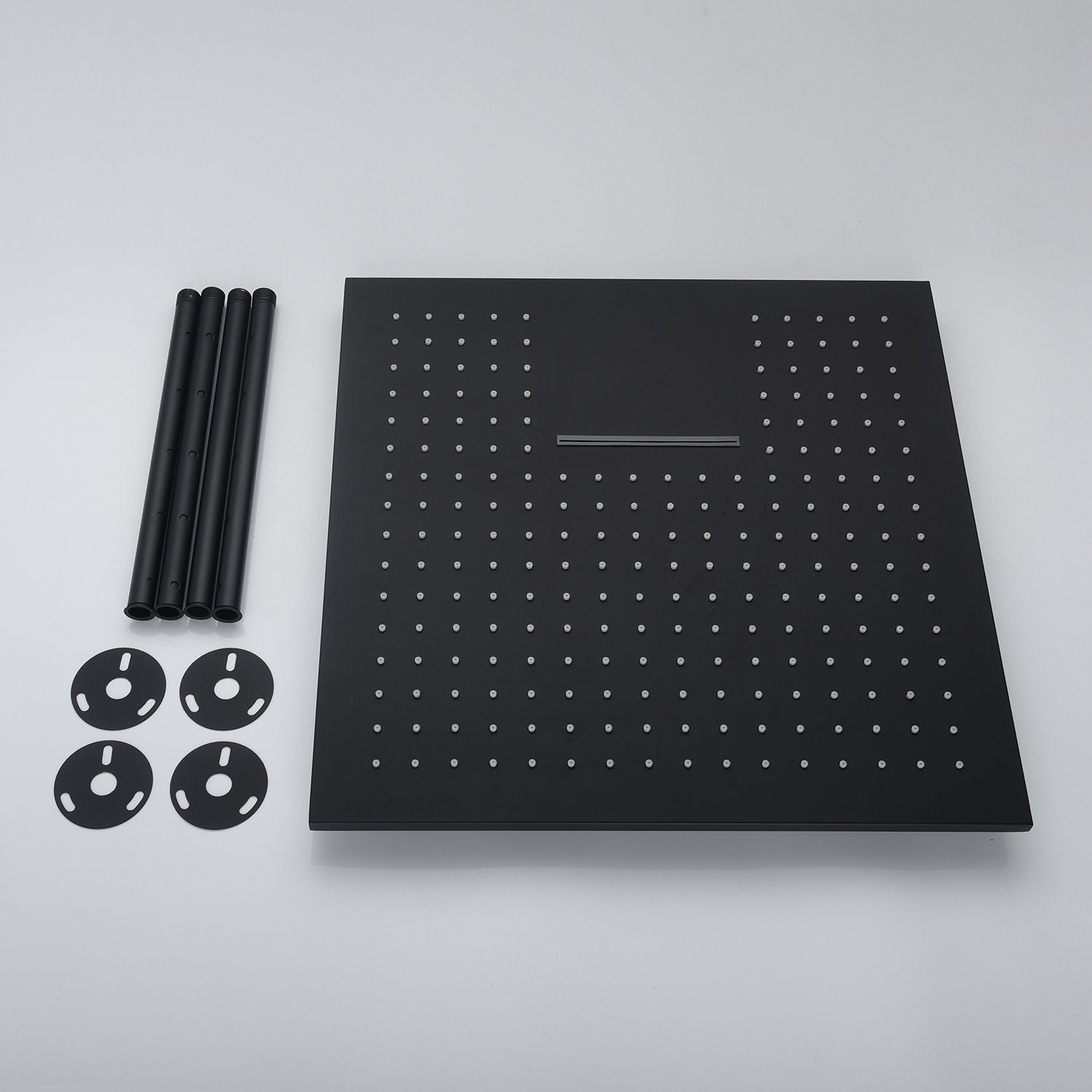

1 * 20 inch waterfall and rainfall shower head (304 stainless steel)
4 * adjustable ceiling shower arm (brass)
1 * shower bracket holder (brass)
1 * 59 inch shower hose (304 stainless steel)
1 * Hand shower (brass)
6 * brass body jets (brass)
