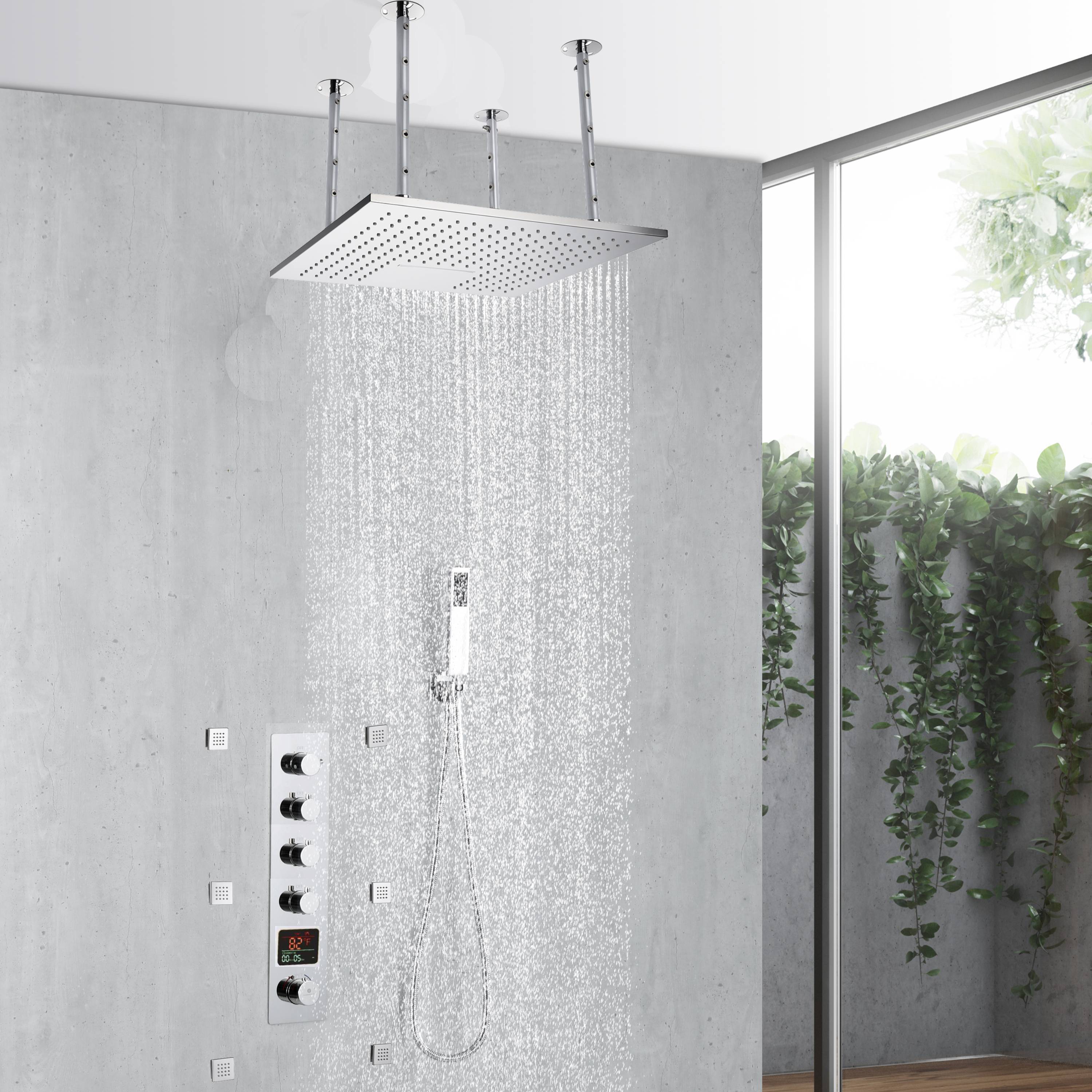

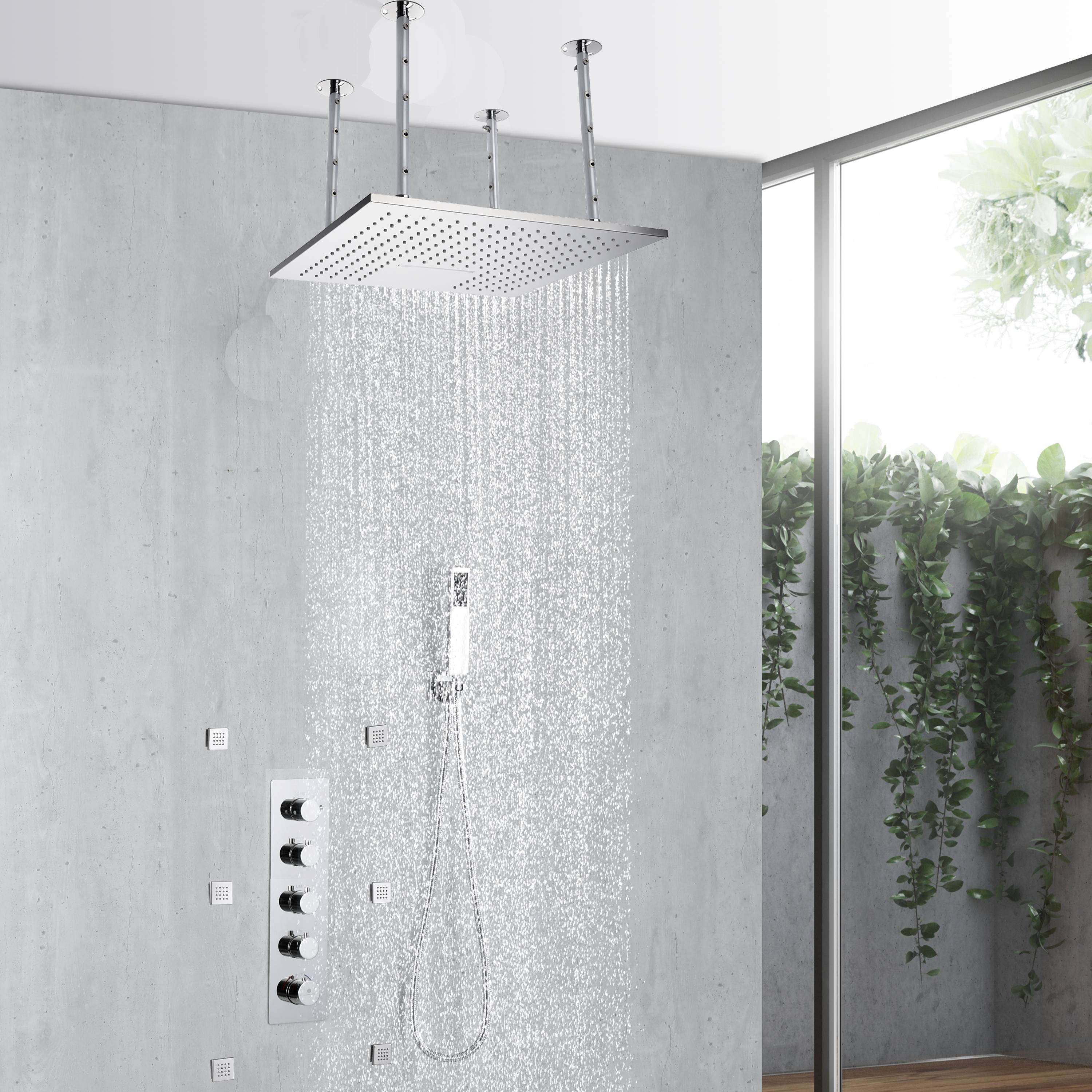

Multi-Function Full Body Shower Faucet Set

Color: Chrome
4 way: waterfall shower, rainfall shower, bodyspray and handheld sprayer

shower head size: 20 x 20 inch

Each function run all together and seperately

Specification
All Metal Material: Solid Brass; Stainless Steel (top showerhead, hose)
Finish: Chrome
Mounting: Concealed installation Ceiling-Mount or flush on ceiling
Shower arm flange: slide along the shaft for easy and quick installation
Hand Spray Hose: 59inch
Body jets: adjustable, 2 x 2 inch
Connection: NPT 1/2 (outlet); G 3/4 (inlet)
Suggestion: Fine water supply will bring you a very best shower experience than ever.

water flow: 2.5GPM~5.5GPM

Water pressure: 0.3 MPA~1 MPA

Water pipe lines: 3/4 inch water pipes for the hot and cold water mixer inlet, the others are 1/2 inch

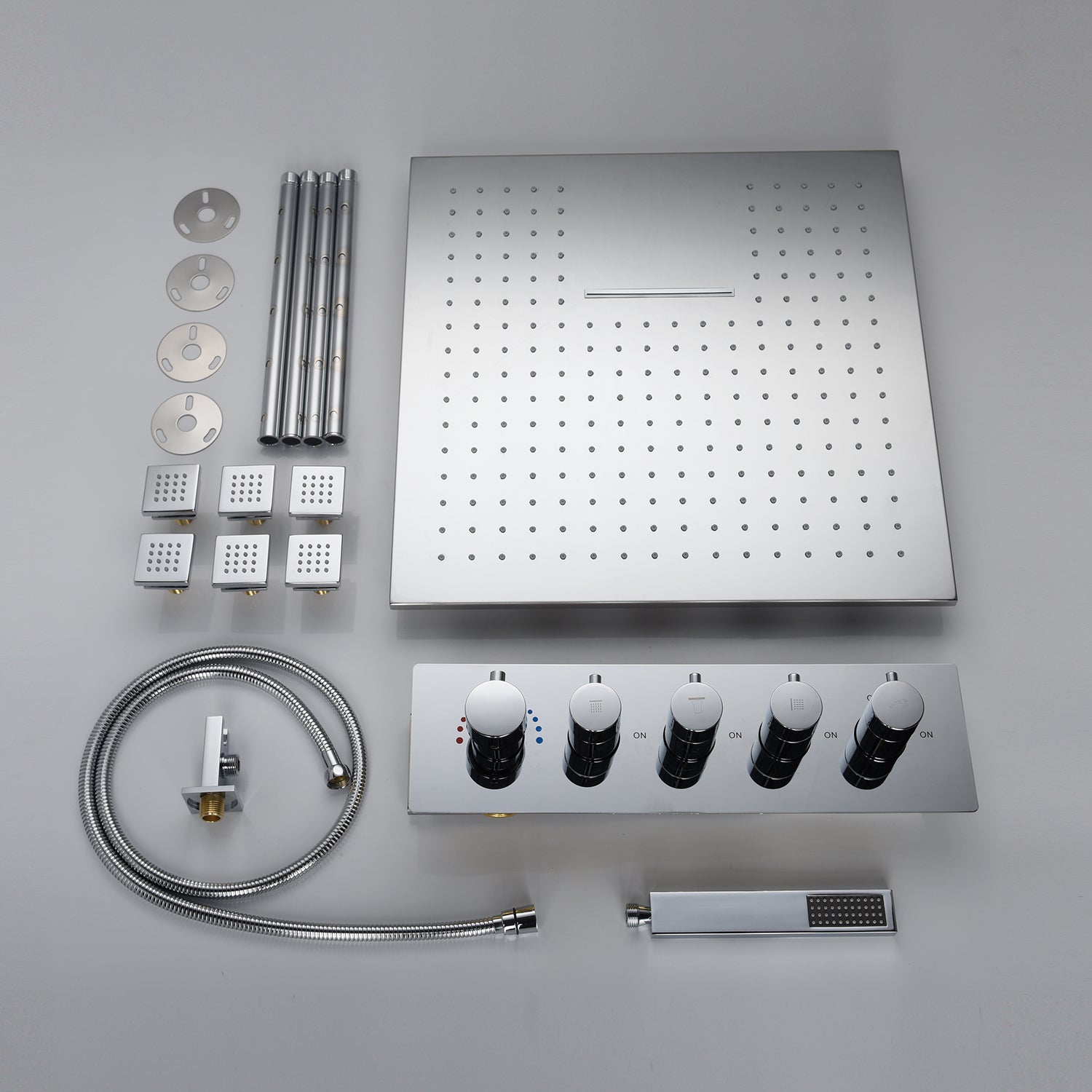

WHAT’S IN THE BOX?

1 * Pressure balancing thermostatic mixer valve and trim (brass)

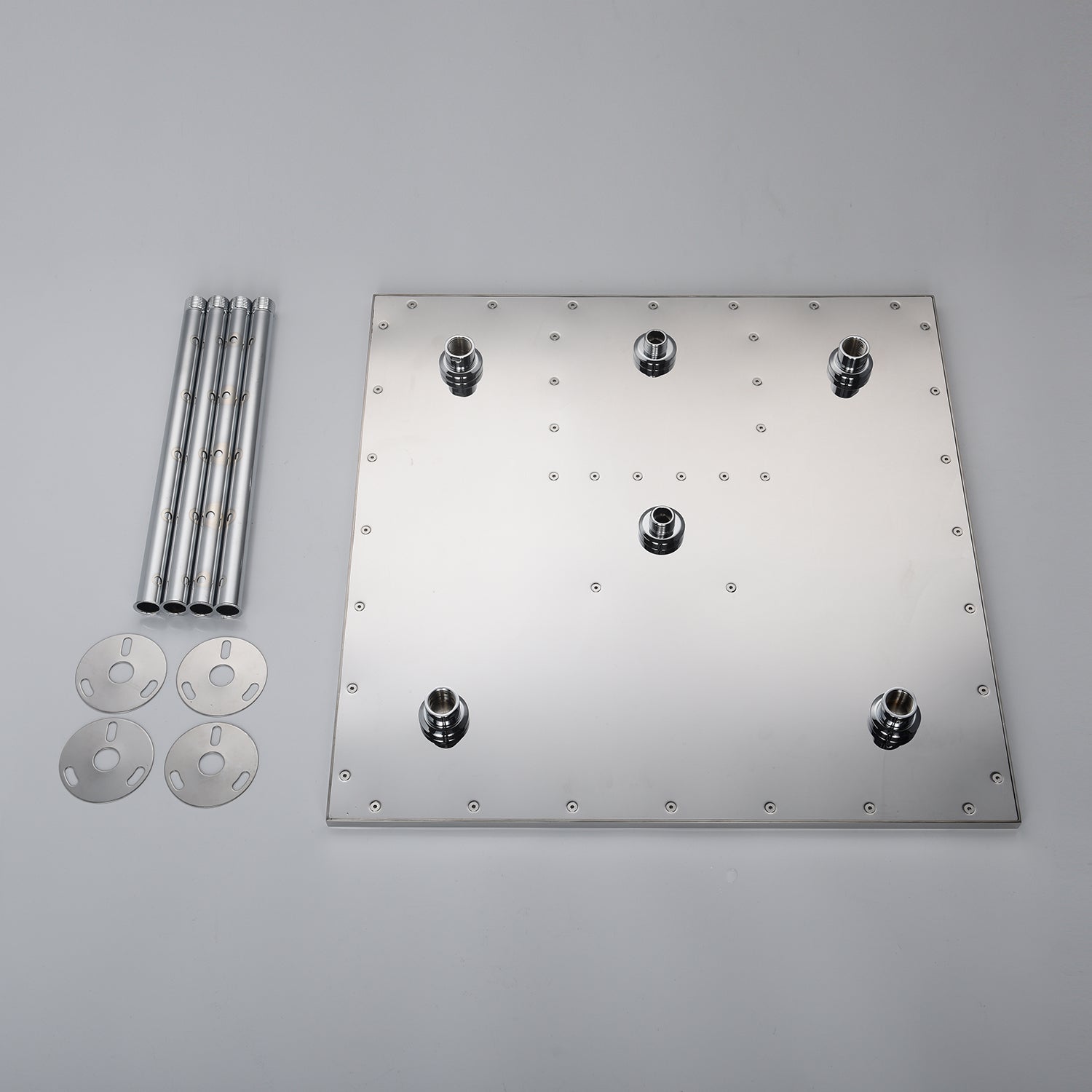

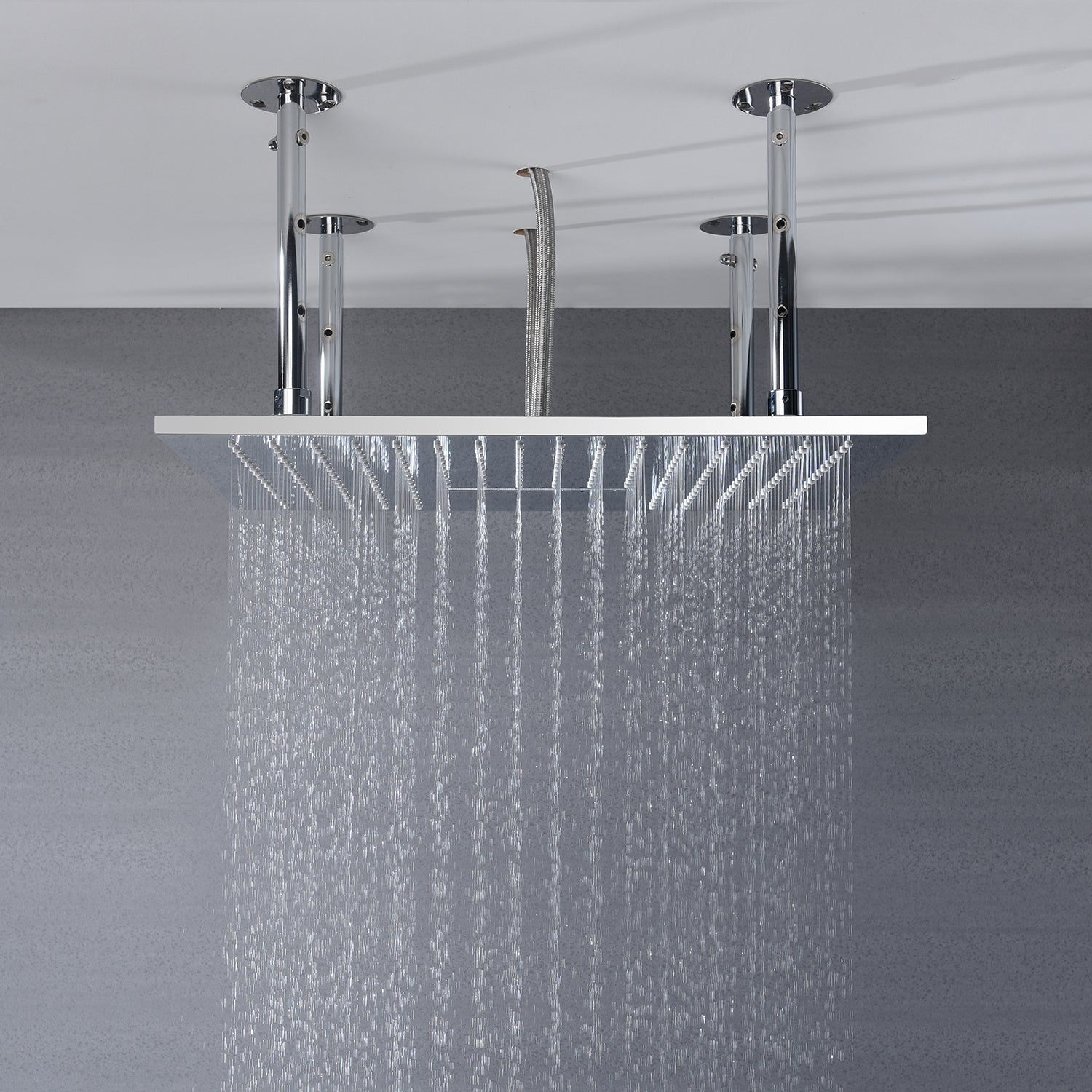

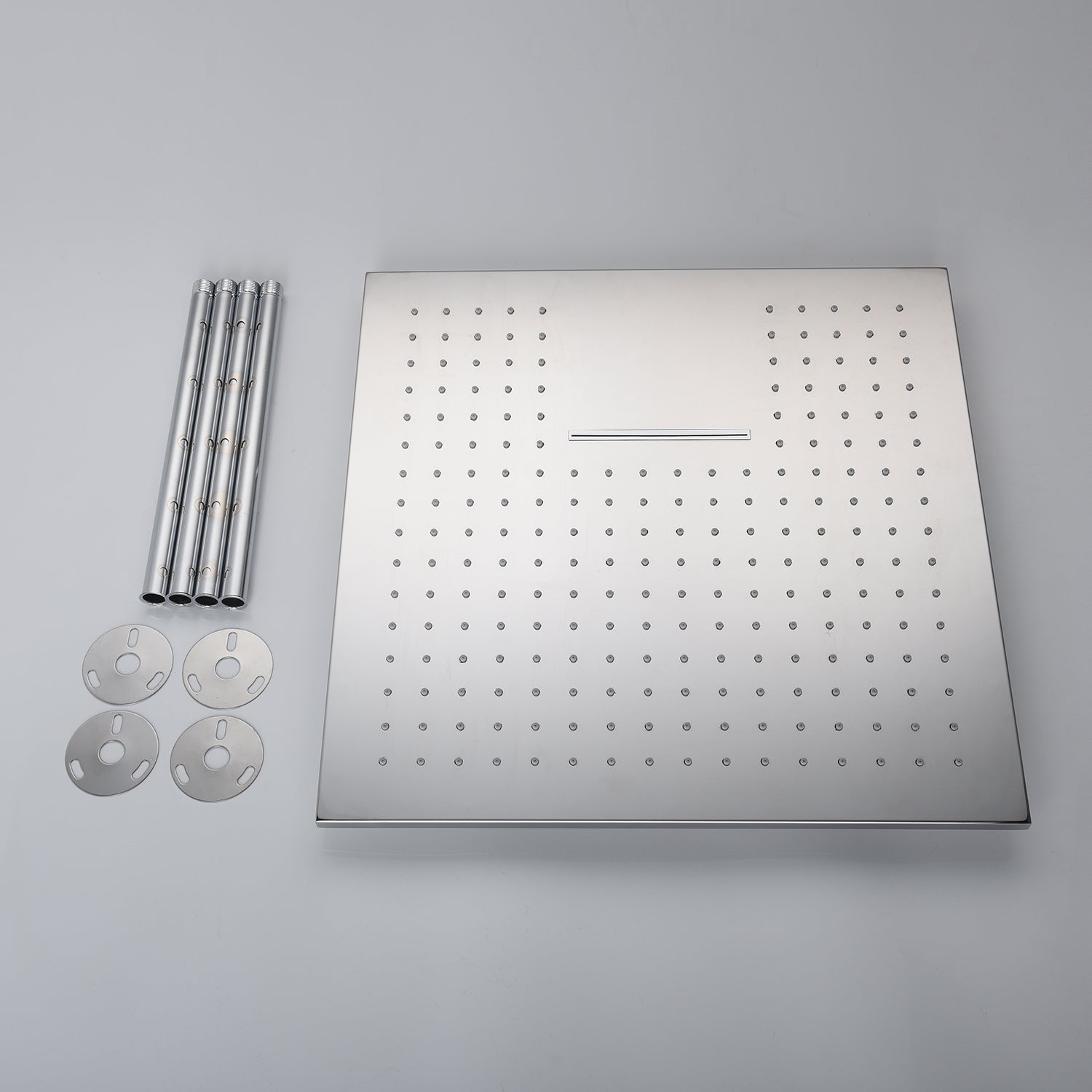

1 * 20 inch waterfall and rainfall shower head (304 stainless steel)

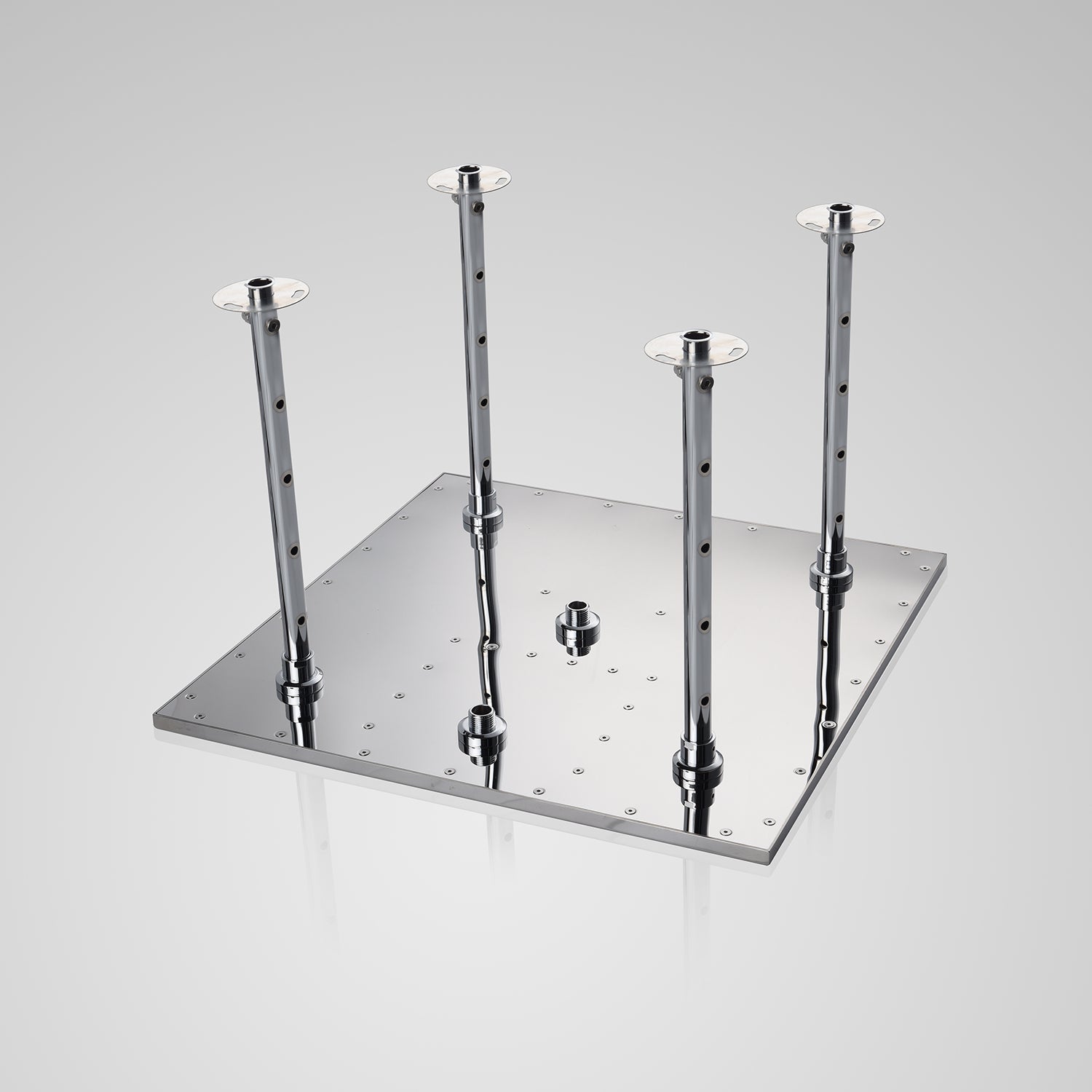

4 * adjustable ceiling shower arm (brass)
1 * shower bracket holder (brass)
1 * 59 inch shower hose (304 stainless steel)
1 * Hand shower (brass)

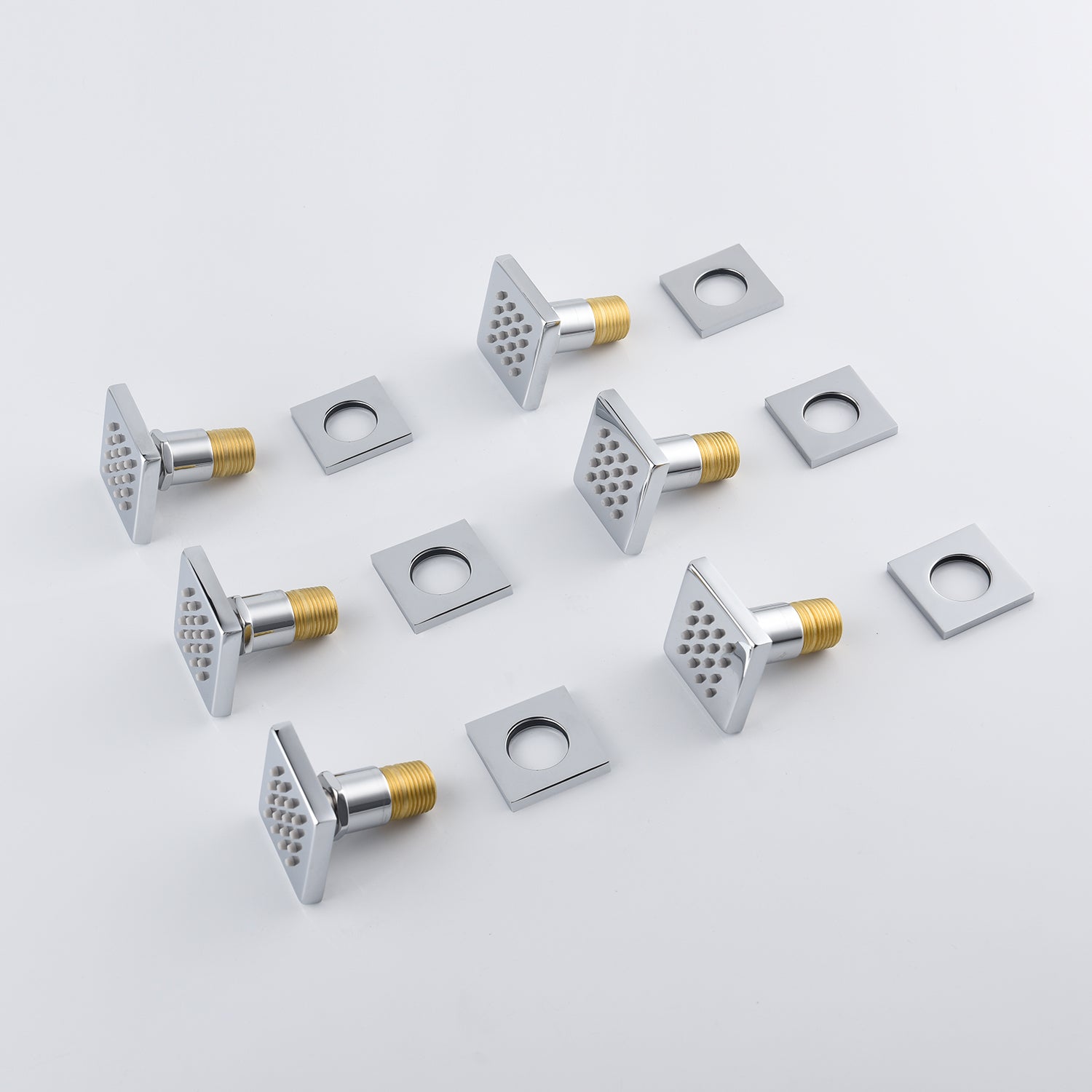

6 * brass body jets (brass)
