Matte Black Ceiling Mounted Shower Faucet: 20" or 24" with LED Colors, Digital Display Valve, 6 Body Jets

SKU A9102D3C20B6Z2
$1,510.00 $899.98

Free 4-Business day delivery in the US, 2-Business day in California

Lifetime Limited Warranty

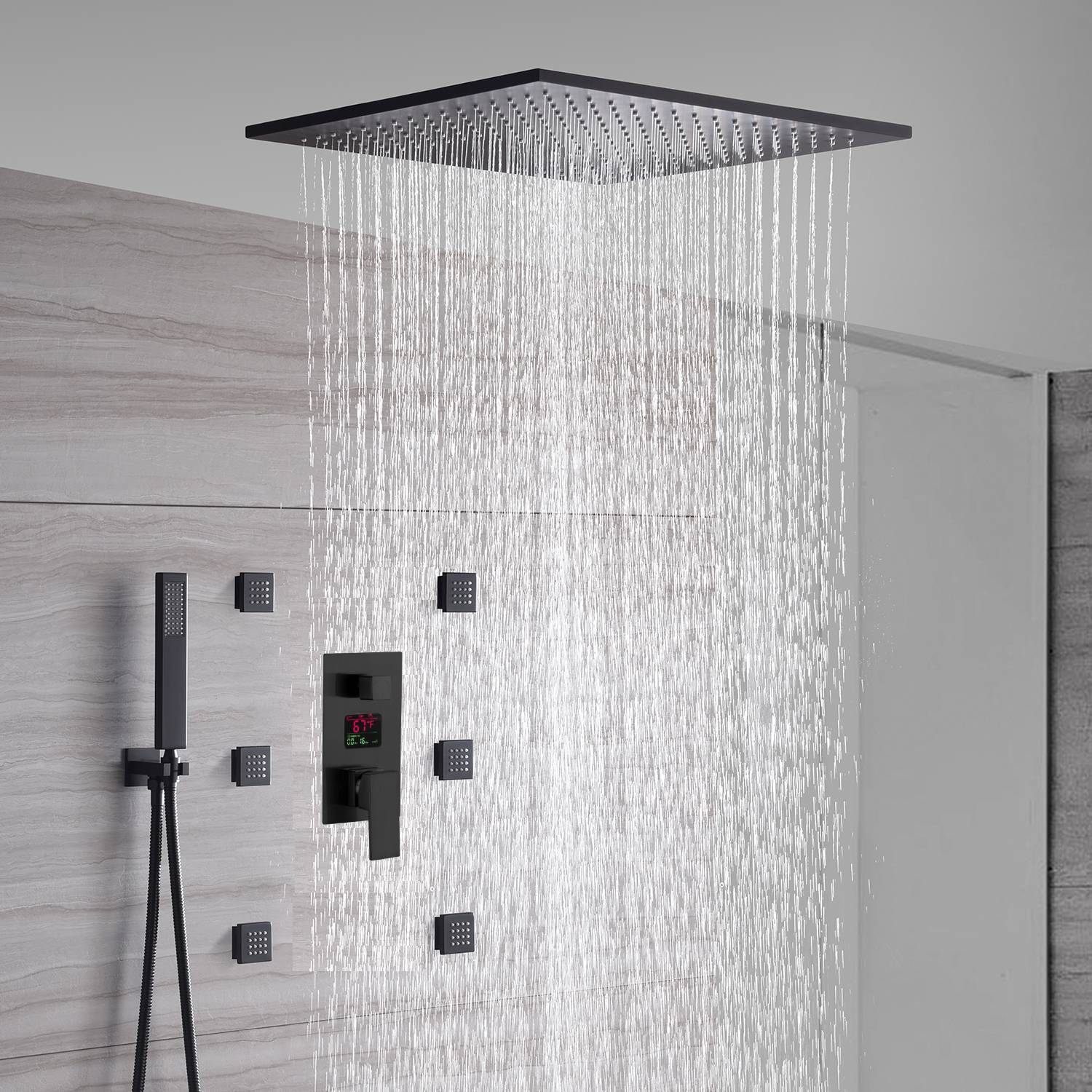

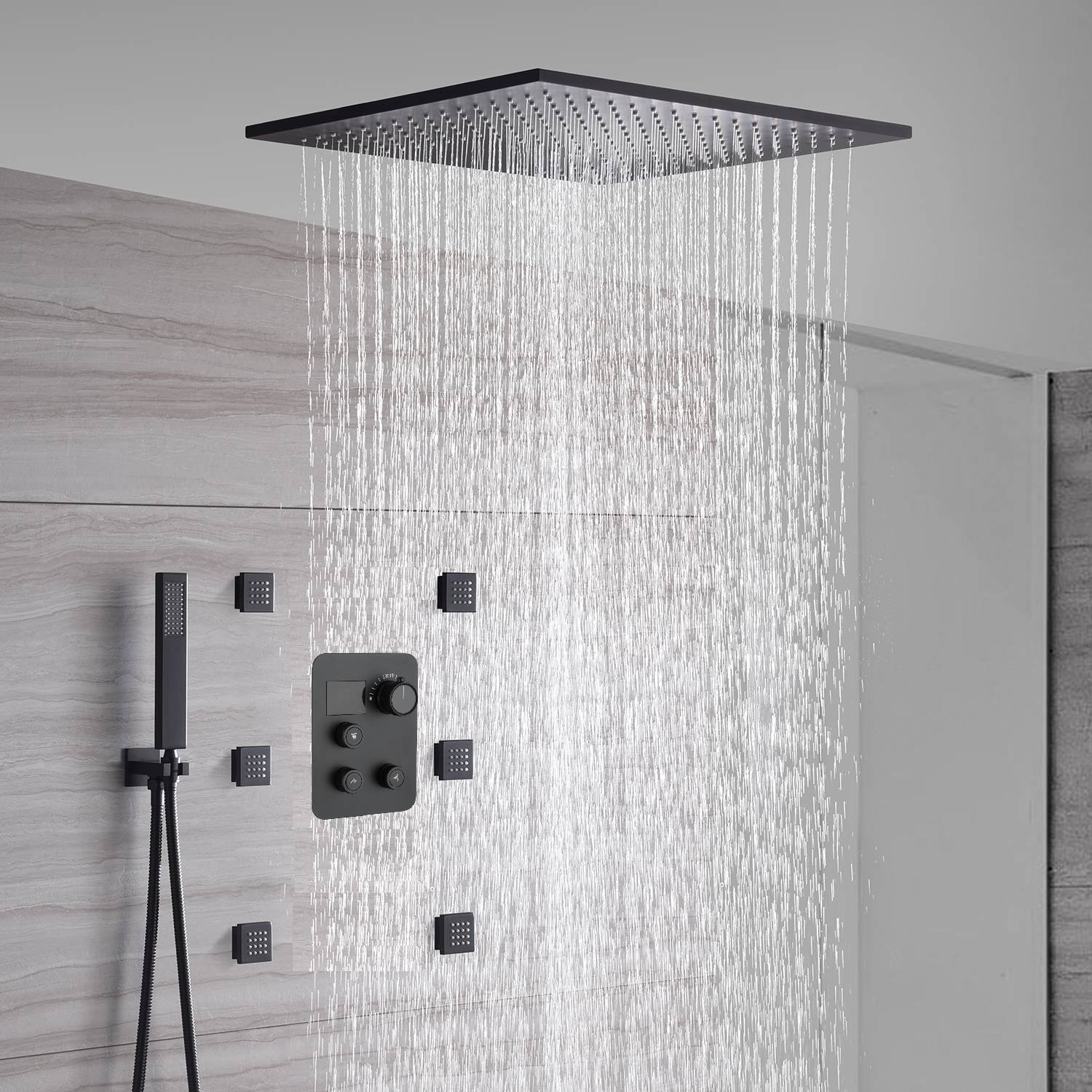

Immerse yourself in an exceptional shower experience with our innovative shower faucet system finished in a sophisticated matte black. This comprehensive system includes a 3-way digital display rough-in valve with trim, a rainfall shower head, a handheld shower head, a shower holder bracket, a shower mixer valve control, six body jets, and a 59-inch shower hose.

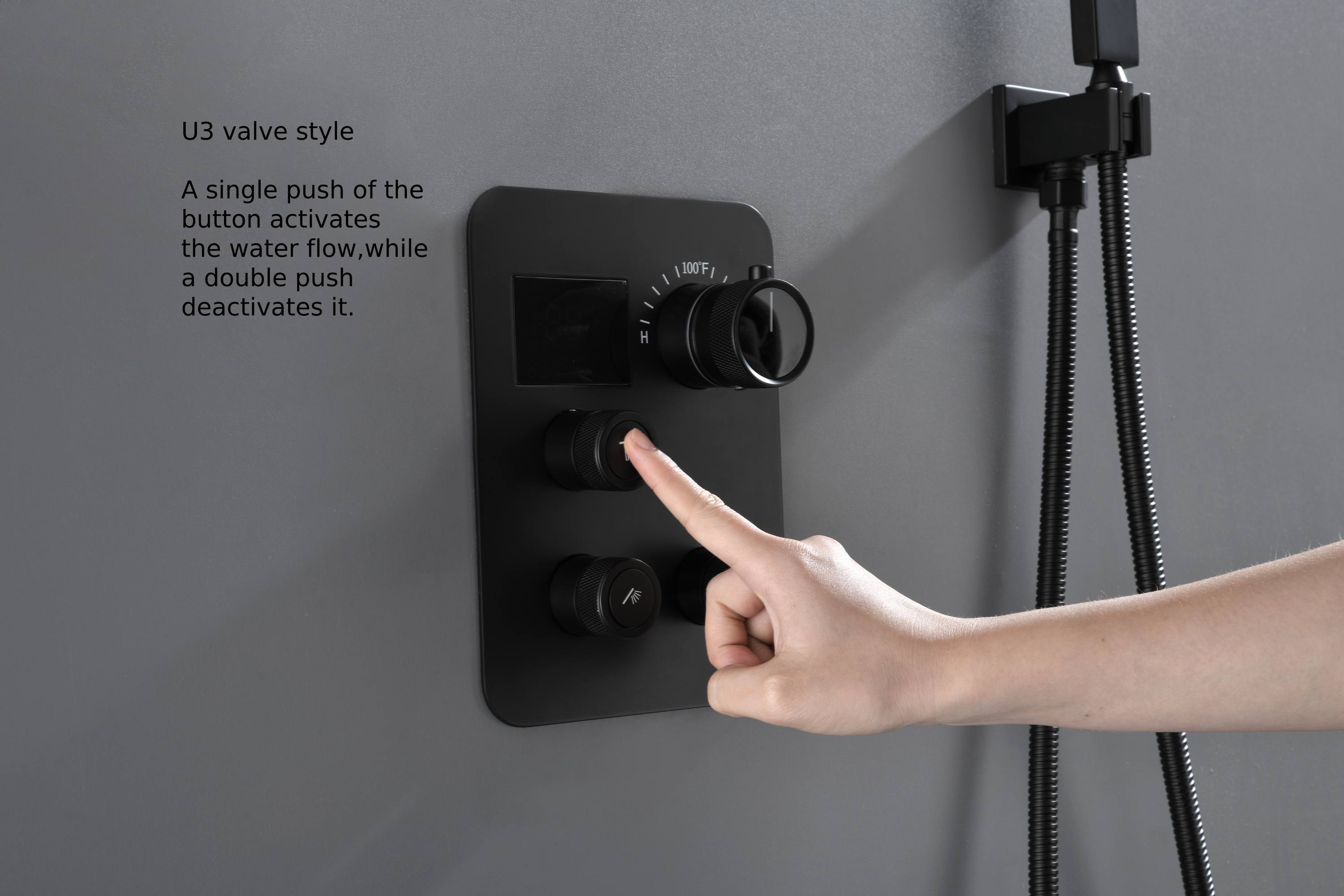

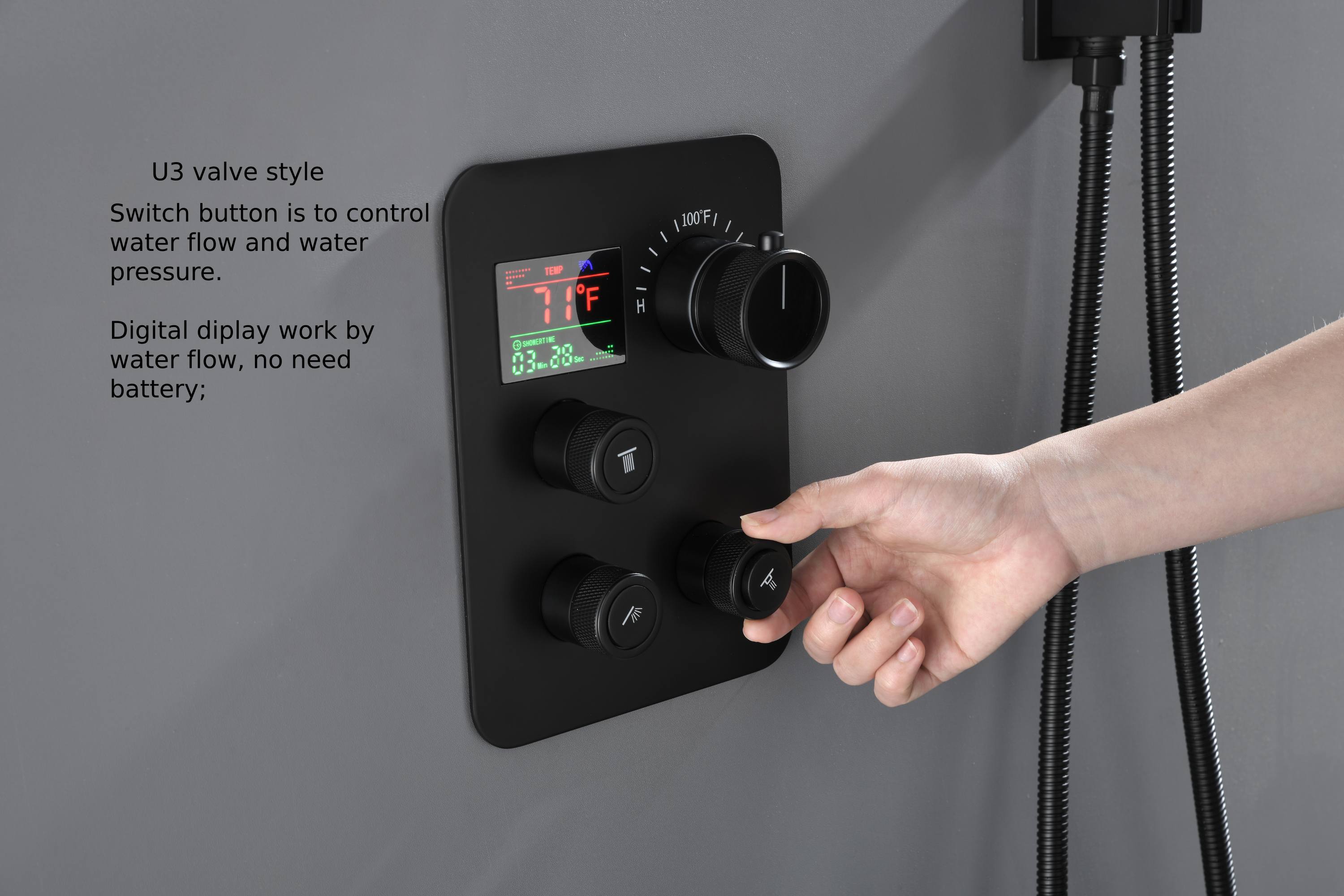

The U3 valve style features a digital display and push buttons for adjusting water flow and pressure, accommodating 1/2 inch or 3/4 inch hot and cold water pipelines, with a high water flow range of 1.5 to 7.8 GPM.

The faceplate size of the U3 valve is 8 3/4'' x 6 1/2'', featuring 3/4'' inlets and 1/2'' outlets, accompanied by a high water flow cartridge; it is compatible with both 1/2'' and 3/4'' hot and cold water pipelines, with a recommendation of using a 3/4'' pipeline for optimal performance, while all other outlet pipelines should be 1/2''.

The U3 valve operates both all functions together and separately, whereas the D3 valve runs each function separately, not all together.

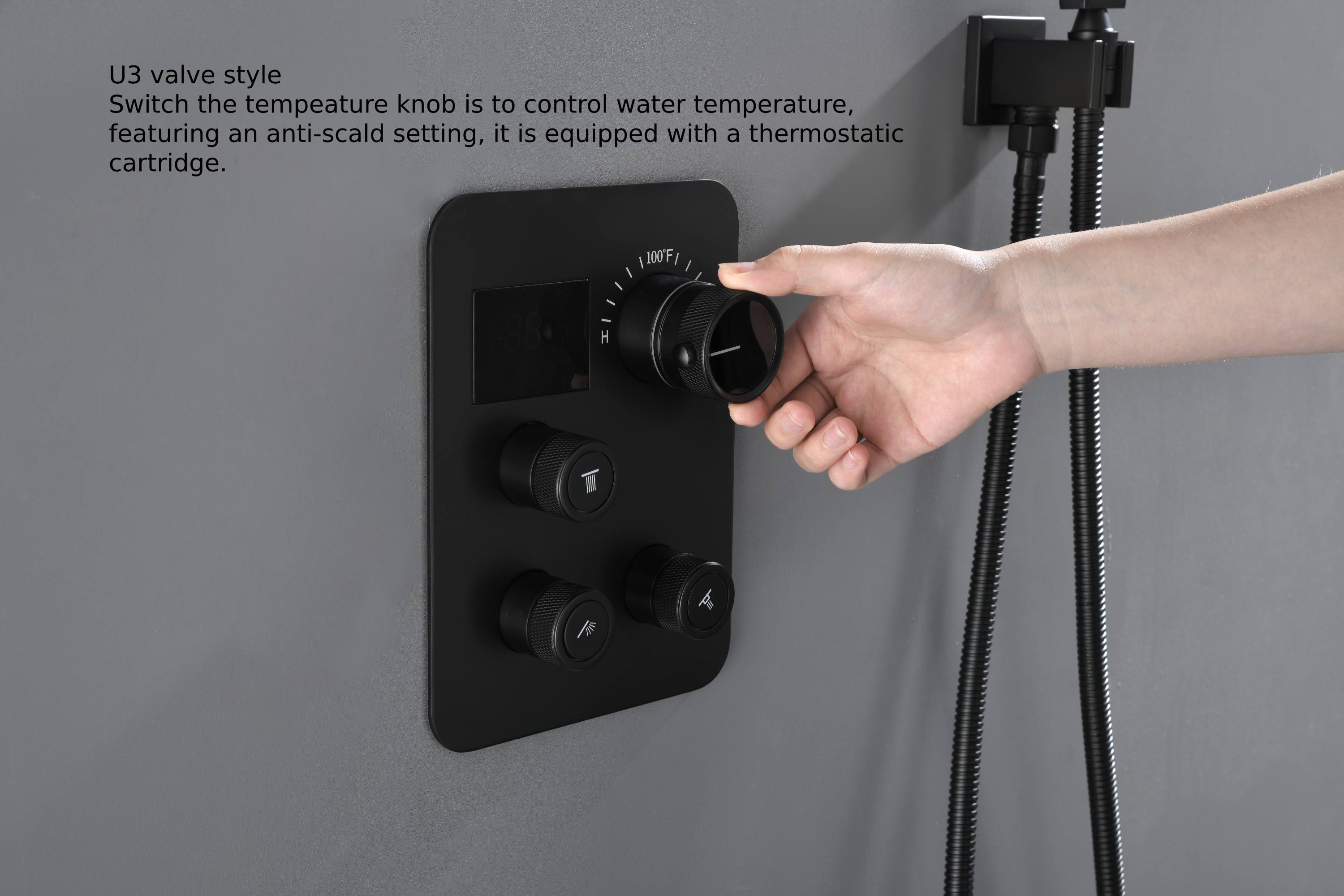

The U3 valve is equipped with a thermostatic cartridge and an anti-scald setting, while the D3 valve comes with a pressure balance cartridge.

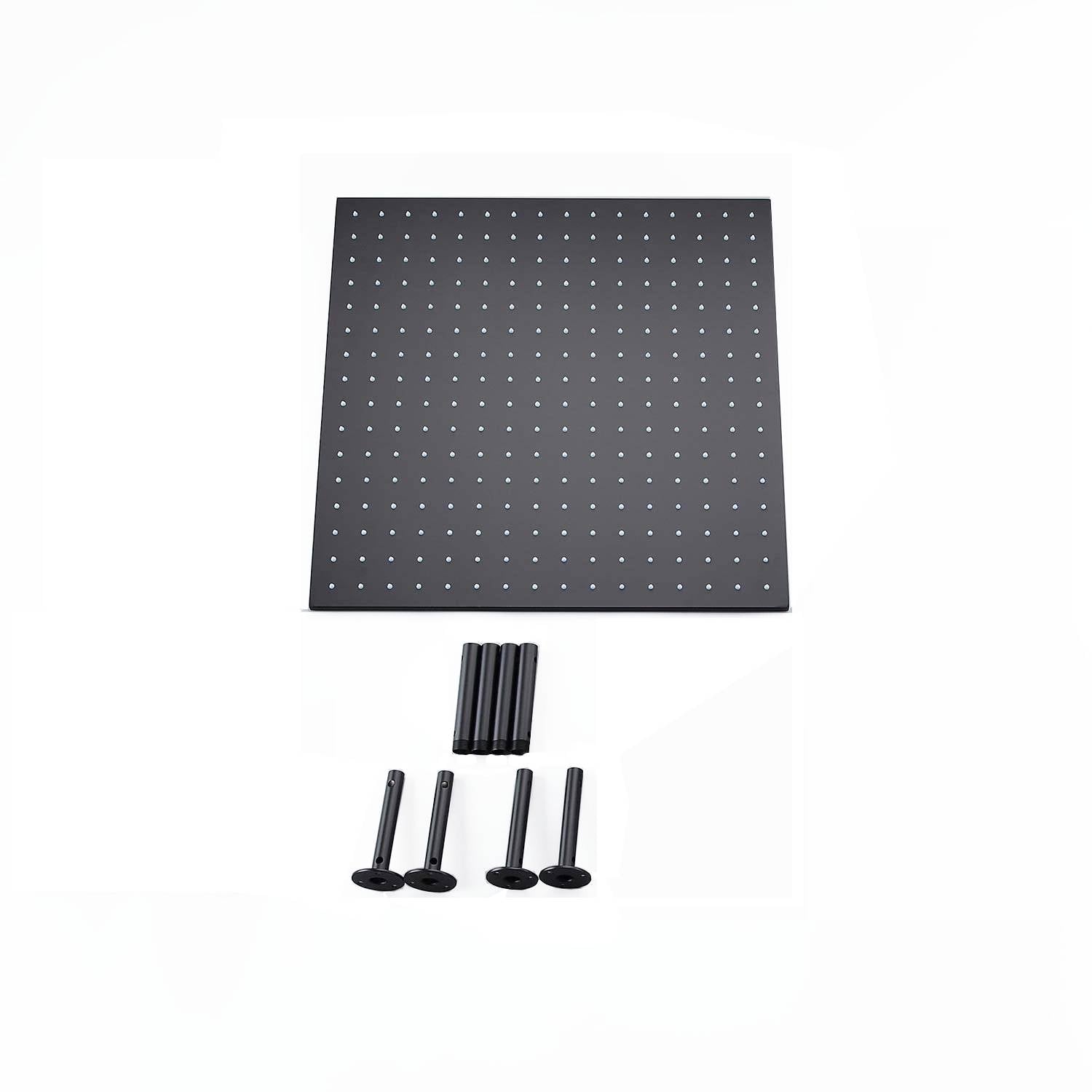

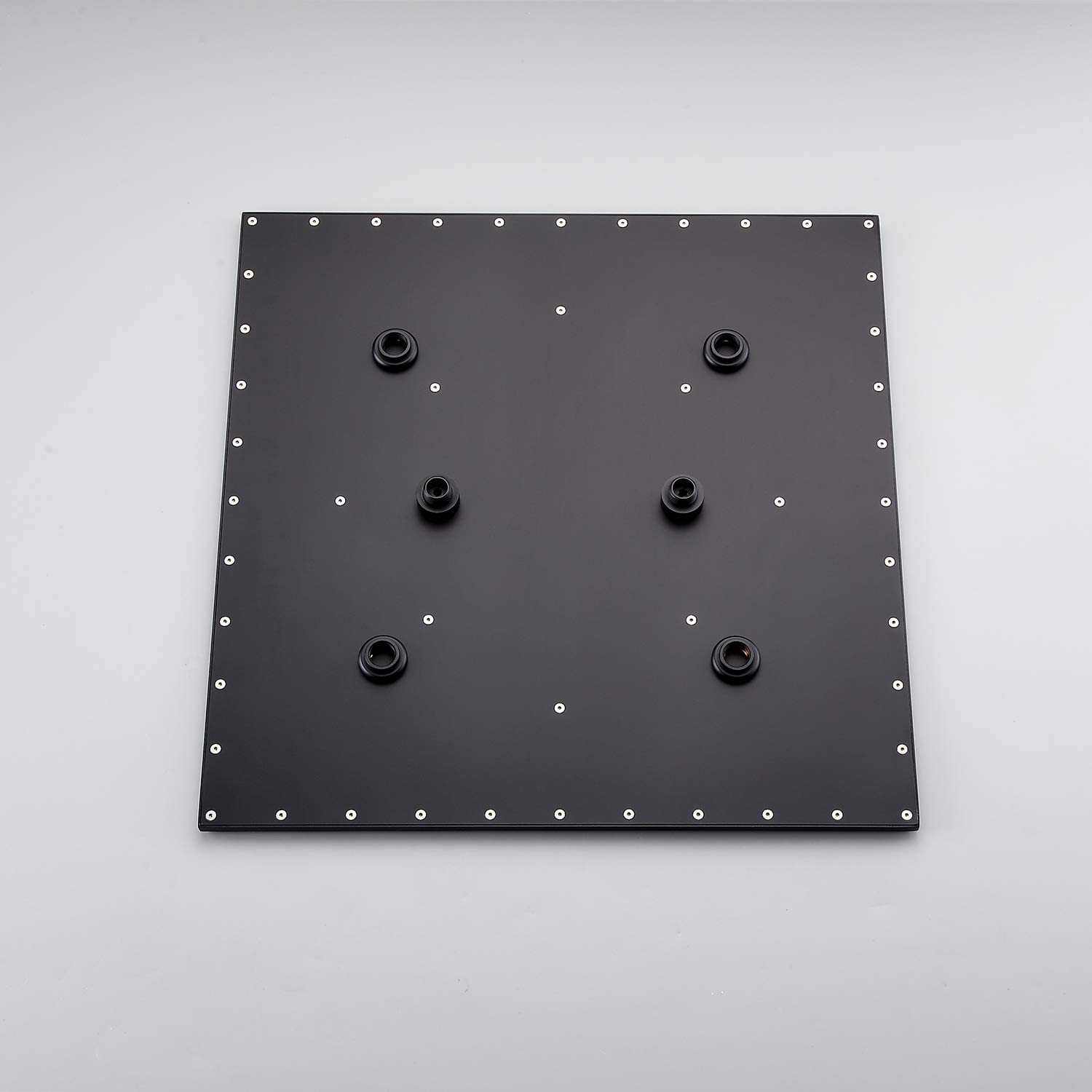

The centerpiece of this system is the fixed rainfall shower head, available in sizes of 20 x 20 inches or 24 x 24 inches. Crafted from brass and finished in matte black, this shower head can be either flush-mounted or hung down from the ceiling, making it suitable for both flat and non-flat ceilings. It features a large surface for full body coverage, 3 LED color lights for an ambient shower experience, and a G1/2" standard connection.

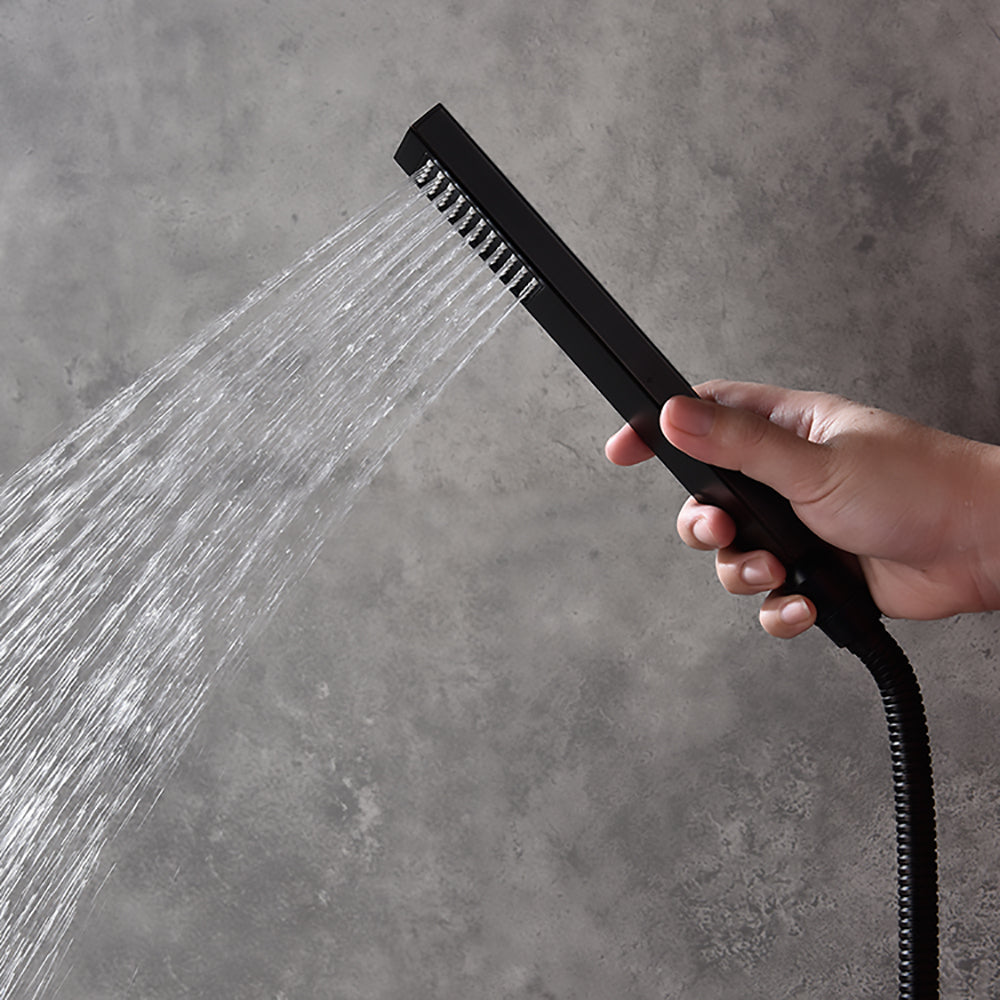

The handheld shower head, also made from brass and finished in matte black, is designed for easy use by the elderly and children. It connects using G1/2" standards.

The wall-mounted shower holder bracket, crafted from brass and finished in matte black, provides a fixed and secure place for the handheld shower head. It connects using 1/2" NPT standards.

The shower mixer valve control is a three-function system made from brass and ceramic valve. It connects using 1/2" standards and is finished in matte black.

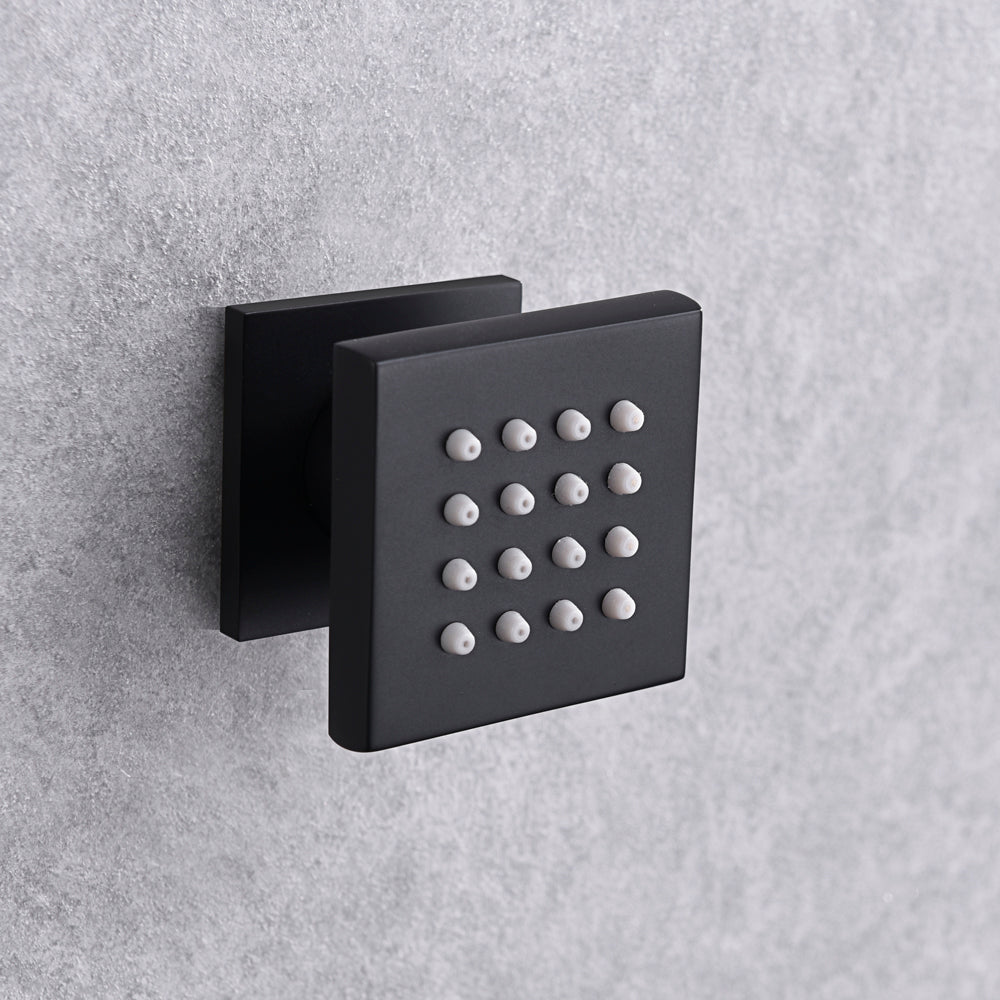

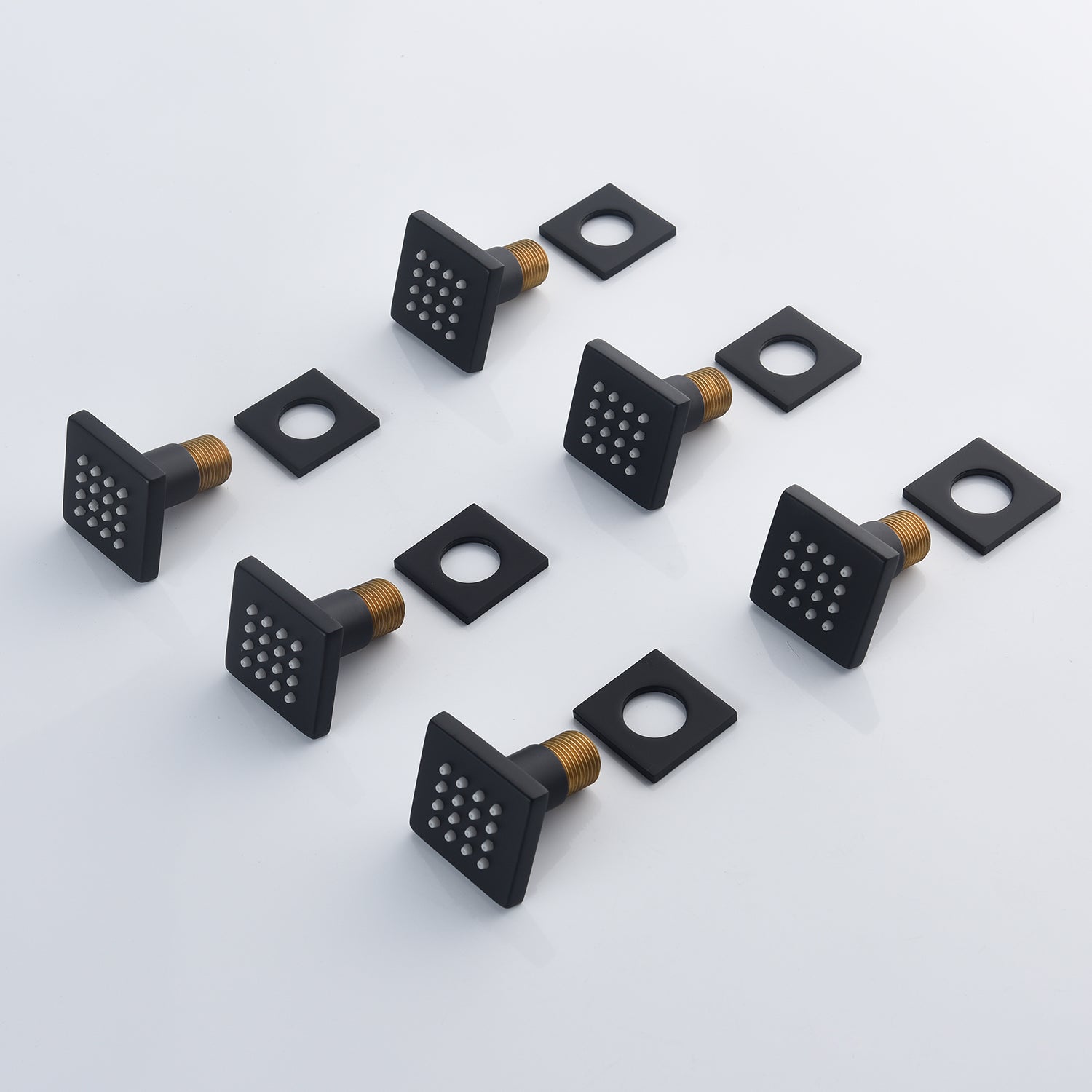

The six 2x2 inch body jets, made from brass and finished in matte black, offer a high-pressure massage feature. They can swivel for customized direction and connect using male NPT 1/2" standards.

The 59-inch shower hose, made from stainless steel and finished in matte black, is flexible and very easy to install. It connects using G1/2" standards.

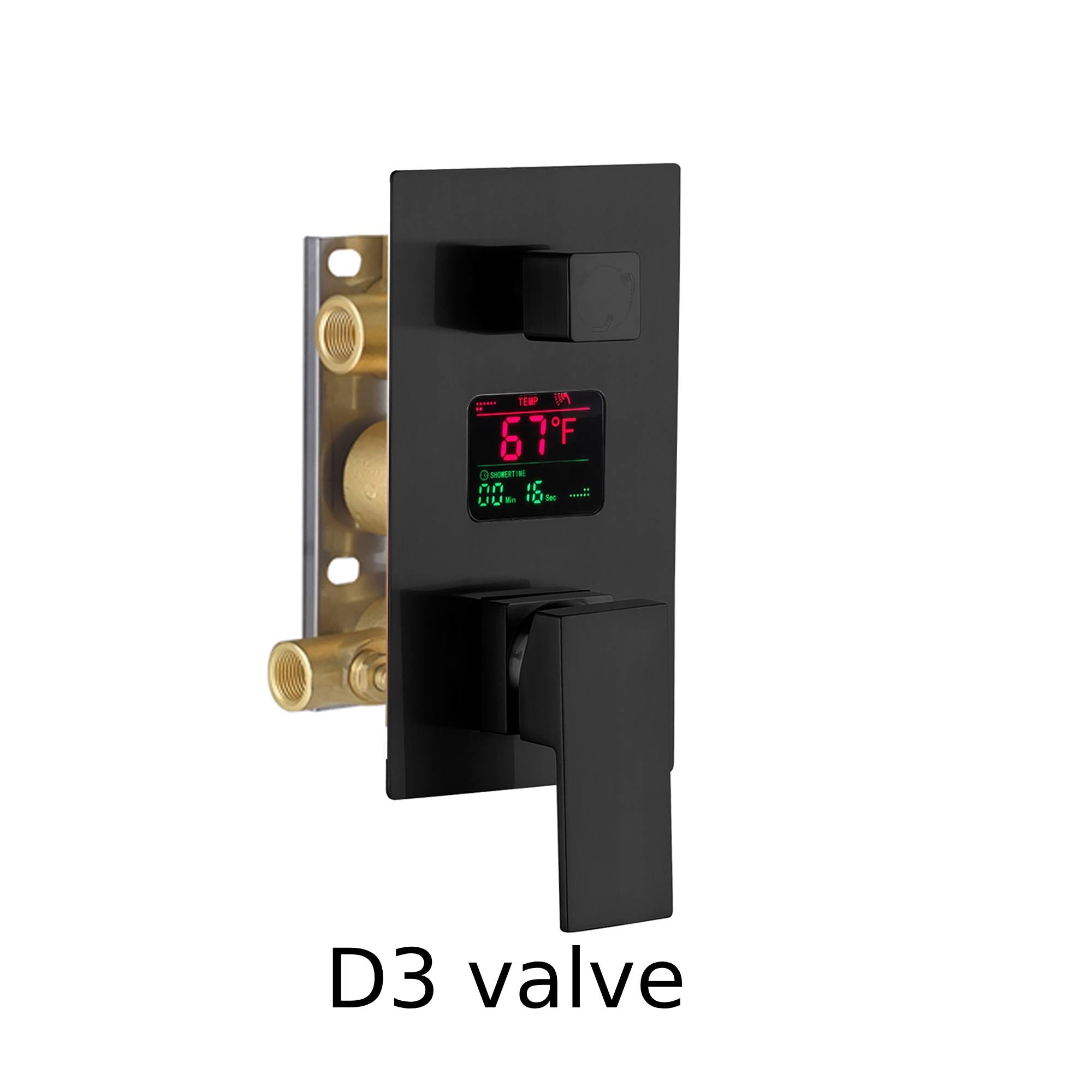

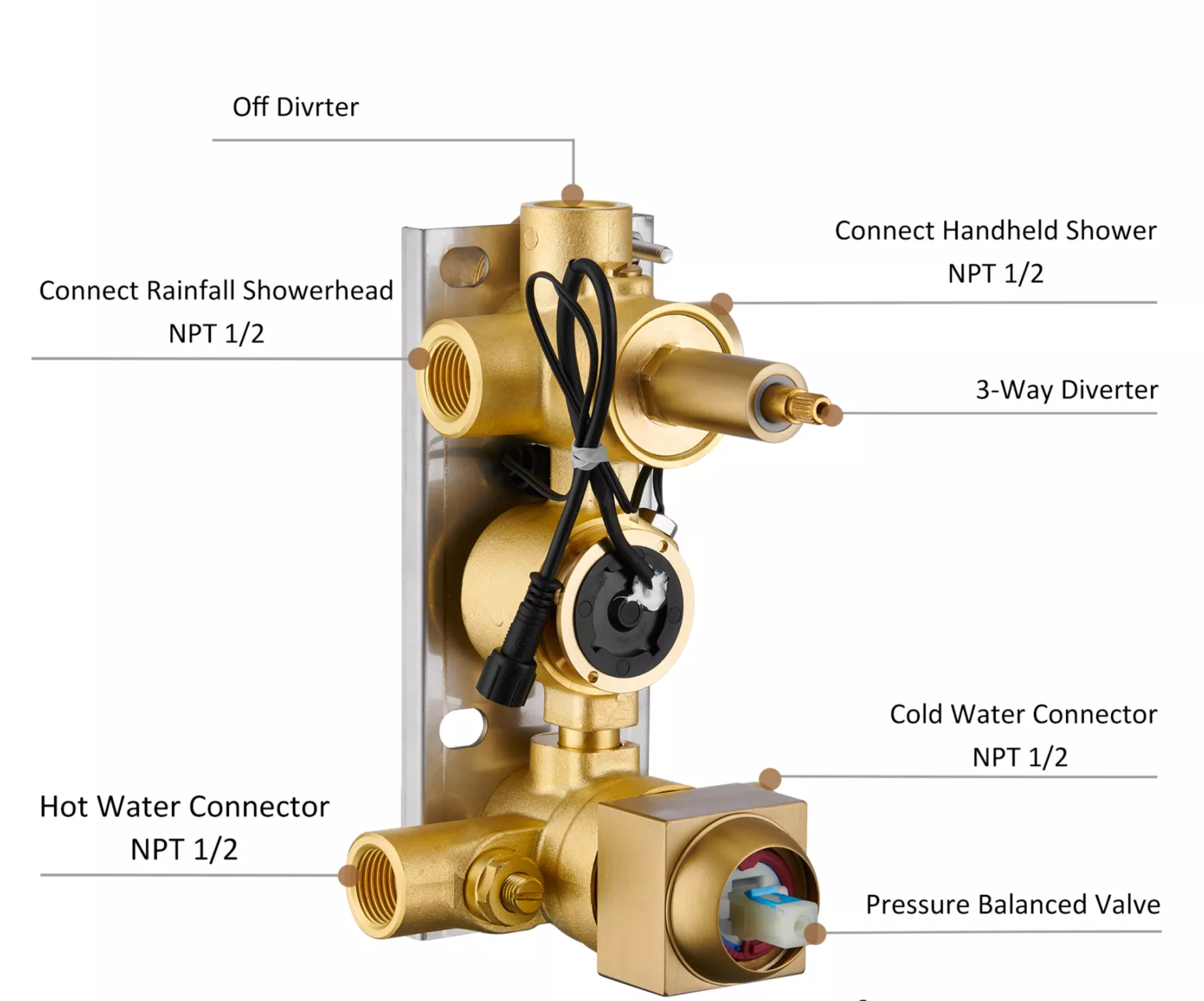

This system D3 features a 3-way digital display rough-in valve with trim, adjustable water flow settings, and an anti-scald setting rough-in valve with a pressure balance cartridge. It operates each function separately and works by water flow, eliminating the need for batteries. D3 valve has 1/2'' inlets and 1/2'' outlets that requires 1/2'' water pipelines.

The system is designed to deliver a water flow of 3.0 GPM for the body jets, 2.5 GPM for the shower head, and 1.2 GPM for the handheld sprayer, with the rough-in valve providing 0~5.5GPM.Each function can run at one time, The system works at a water pressure 40~142 PSI, with an optimal range of 70~90 PSI.

In summary, this matte black ceiling-mounted shower faucet system combines innovative features and a sleek design to deliver a customizable and luxurious shower experience.
